MTD008271

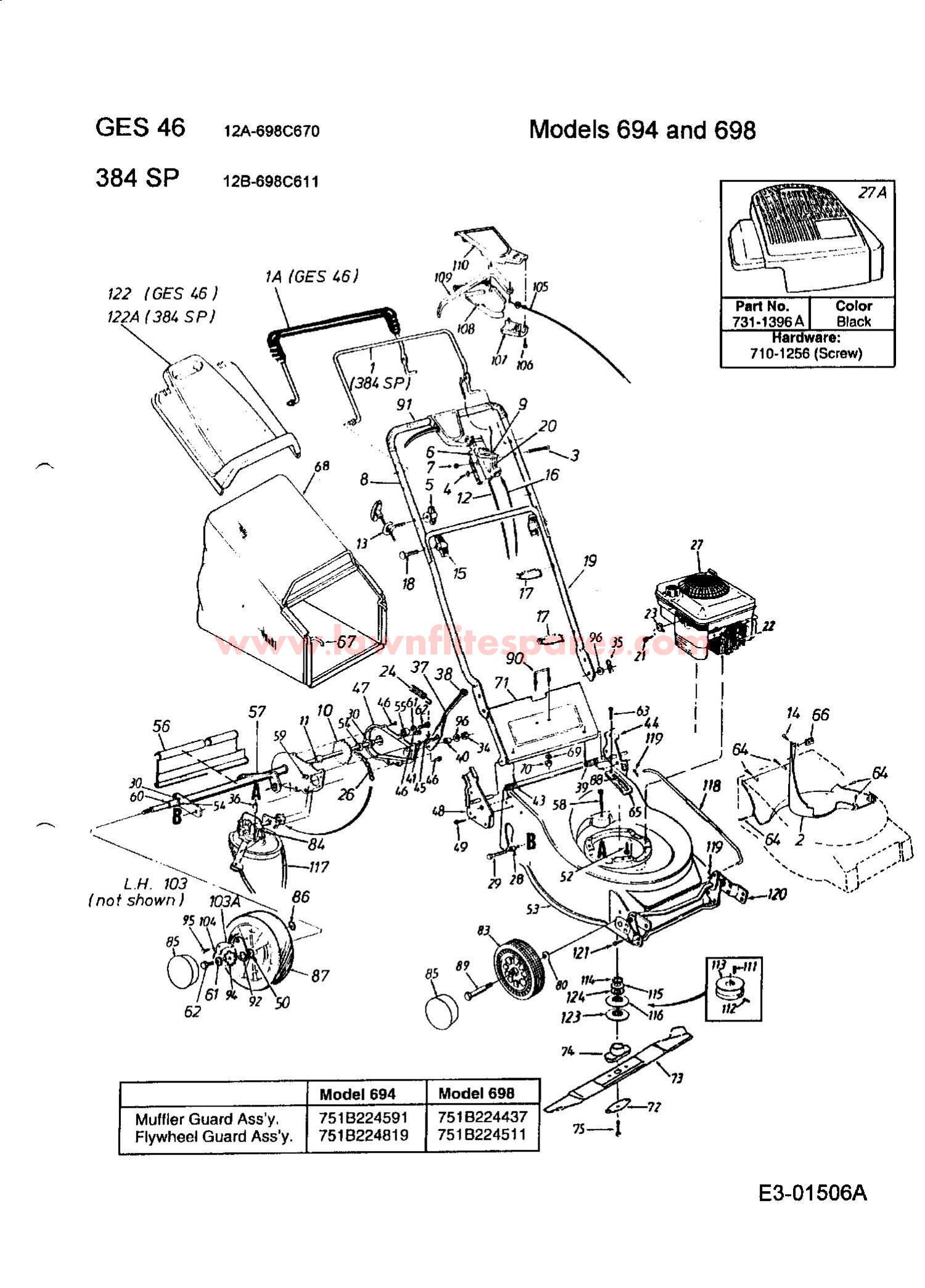

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	747-0824637	BRAKE BAIL	£19.77	Add
002	731-1633C	BAFFLE	£27.72	Add
003	710-1131	SCREW	£5.70	Add
004	736-0501	SPRING WASHER (RED)	£4.00	Add
005	720-0279	WING NUT	£2.99	Add
006	746-0875	THROTTLE BOX BODY	£17.98	Add
007	712-0324	HEX. INS L NUT	£3.69	Add
008	749-0539B-0637	HANDLE-UPPER 749-0539B	£43.70	Add
009	746-0876	LEVER-THROTTLE	£12.97	Add
010	638-0002A	AXLE COMPL.	£67.32	Add
011	741-0522	HEX FLANGE BEARING	£4.65	Add
012	746-1009	THROTTLE CONTROL WIRE	£14.70	Add
013	710-1205	ROPE GUIDE	£3.26	Add
014	710-1388	SCREW	£3.23	Add
015	720-0368	WING NUT	£5.19	Add
016	746-1021	NO LONGER AVAILABLE	N/A	POA
017	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add
018	710-1375	SCREW	£3.69	Add
019	749-04037637	HANDLE LOWER	£72.14	Add
01A	647-0004	LVR:CONT:DELUXE	£47.81	Add
020	811-0185	CONTROL-THROTTLE	£29.81	Add
021	710-1237	SCREW SELF TAP	£3.00	Add
022	735-0639	NO LONGER AVAILABLE	N/A	POA
023	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
024	732-0740	SPR.EXTN: .73 OD X 4.28 LG	£12.75	Add
025	710-0252	NO LONGER AVAILABLE	N/A	POA
026	713-0443	CHAIN-ENDLESS	£10.65	Add
027	752B1752B1	ENGINE B&S QTM 4.5	£580.31	Add
028	750-0736	SPACER .383IDx.50OD x.18LG	£3.07	Add
029	710-1006	NO LONGER AVAILABLE	N/A	POA
030	741-0324A	BEARING	£5.54	Add
034	712-0296	NUT:JAMLK:3/8-24	£3.59	Add
035	714-0104	PIN INTERNAL COTTER	£2.78	Add
036	750-0589	SPACER	£5.50	Add
037	732-0580	NO LONGER AVAILABLE	N/A	POA
038	720-0223	GRIP	£11.48	Add
039	732-0677	NO LONGER AVAILABLE	N/A	POA
040	750-0624	SPCR:SHLDR:.387IDx.50ODx1.50LG	£13.43	Add
041	736-0169	L. WASHER	£2.89	Add
042	712-0711	NUT	£3.07	Add
043	732-0678	SPRING,EXT.1"	£4.55	Add
044	682-3027A	BRACKET-HANDLE LH	£27.56	Add
045	711-0805	PIN:SHLD:3/8-24 x 1.43 LG	£7.82	Add
046	710-0352	SCR:B-1/4-14:.375:HWINDWSH	£7.96	Add
047	682-7516637	COVER ASSY-CHAIN	£56.91	Add
048	682-3028A	NO LONGER AVAILABLE	N/A	POA
049	710-0896	SCREW WITH WASHER ST	£4.97	Add
050	741-0486B	BEARING	£21.98	Add
052	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
053	682-0270650	NO LONGER AVAILABLE	N/A	POA
054	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
055	750-0664	SPACER	£3.90	Add
056	731-1486	NO LONGER AVAILABLE	N/A	POA
057	682-7517637	REAR AXLE	£91.43	Add
058	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
059	712-0711	NUT	£3.07	Add
060	750-0289	SPACER	£10.42	Add
061	736-0270	BELL WASHER	£3.91	Add
062	710-0751	BOLT 069	£3.39	Add
063	710-1017	TAP SCREW	£2.97	Add
064	710-1220	SCREW	£2.81	Add
065	17323	PLATE-HGT ADJ	£9.86	Add
066	712-0400	U NUT	£5.75	Add
067	747-0913-0637	FRAME GRASS BAG	£69.77	Add
068	764-0458	GRASS BAG	£140.97	Add
069	736-0119	LOCK WASHER 5/16	£3.33	Add
070	712-3010	NUT 5/16 x 18	£2.77	Add
071	782-7568-0637	REAR FLAP 782-7568	£53.51	Add
072	736-0524B	SPR BLADE BELL	£8.61	Add
073	742-0638	18 INCH BLADE	£26.40	Add
074	748-0376E	BLADE ADAPTOR	£26.64	Add
075	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
080	736-0105	BELL WASHER	£3.33	Add
083	734-1980	WHEEL	£38.31	Add
084	618-0136	TRANSMISSION	£198.26	Add
085	720-0249	HUB CAP	£4.89	Add
086	712-0414	WELD NUT 1/4-20 THREAD	£3.77	Add
087	734-1978	WHEEL 8 X 2"	£35.46	Add
088	721-0216	SEAL-HGT ADJ	£8.82	Add
089	738-0102	SHOULDER BOLT	£7.13	Add
090	747-0623	HANDLE-CHUTE DOOR	£12.42	Add
091	720-0387	SHRINKABLE TUBE PHTALAT FREE	£12.60	Add
092	16855	PAWL PLATE	£8.97	Add
094	748-0318	RATCHET WHEEL	£12.29	Add
095	738-0137A	BOLT	£8.58	Add
096	736-0105	BELL WASHER	£3.33	Add
103	748-0188B	PAWL LH	£11.45	Add
103A	748-0381	PAWL RH	£10.30	Add
104	10622B	NYLON SPRING	£5.07	Add
105	746-1006	6SPD ADJUSTING CABLE	£23.87	Add
106	710-0841	SCREW	£4.89	Add
107	731-1059	CABLE MOUNTING CAP	£8.97	Add
108	731-1058	NO LONGER AVAILABLE	N/A	POA
109	731-0620A	LEVER	£13.21	Add
110	731-1057	NO LONGER AVAILABLE	N/A	POA
110A	777-3248	NO LONGER AVAILABLE	N/A	POA
111	714-0122	SQUARE KEY	£12.95	Add
112	710-0497	THREADED PIN	£3.70	Add
113	756-0554A	2.62 DIA PULLEY	£70.01	Add
114	748-0358	SPACER:.880 ID x1.280 x.240	£3.69	Add
115	736-0514	WASH:FLAT:.885 x 1.850 x.060	£3.07	Add
116	756-0962	PULLEY-HALF-UPPER	£9.50	Add
117	754-0327	V-BELT	£24.28	Add
118	747-0914	ROD-LIFT INDEX	£18.48	Add
119	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
120	638-0001637	AXLE ASM:FRONT:18" RD SGL LVR 638-0001	£58.36	Add
121	710-0352	SCR:B-1/4-14:.375:HWINDWSH	£7.96	Add
122	731-1514A	COVER-HARDTOP	£66.14	Add
122A	731-1875	CVR:HRDTP:EURO II	£63.82	Add
123	756-0961	NO LONGER AVAILABLE	N/A	POA
124	736-0513	WASHER:SPR:.890 x 1.70 x .048	£11.29	Add
18A	736-0689	L-WASHER	£3.26	Add
27A	731-1396A	ENGINE HOOD	£62.98	Add
27A1	751B224437	EXHAUST PROTECTION	£39.98	Add
27A2	710-1268	SCREW HEX WASHER HD TAPP	£3.26	Add
27A3	751B224511	GUARD-FLYWHEEL	£8.17	Add
27A4	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
87A	734-1826	WHEEL ASSY W/TIRE 734-1510B	£50.98	Add
