MTD008399

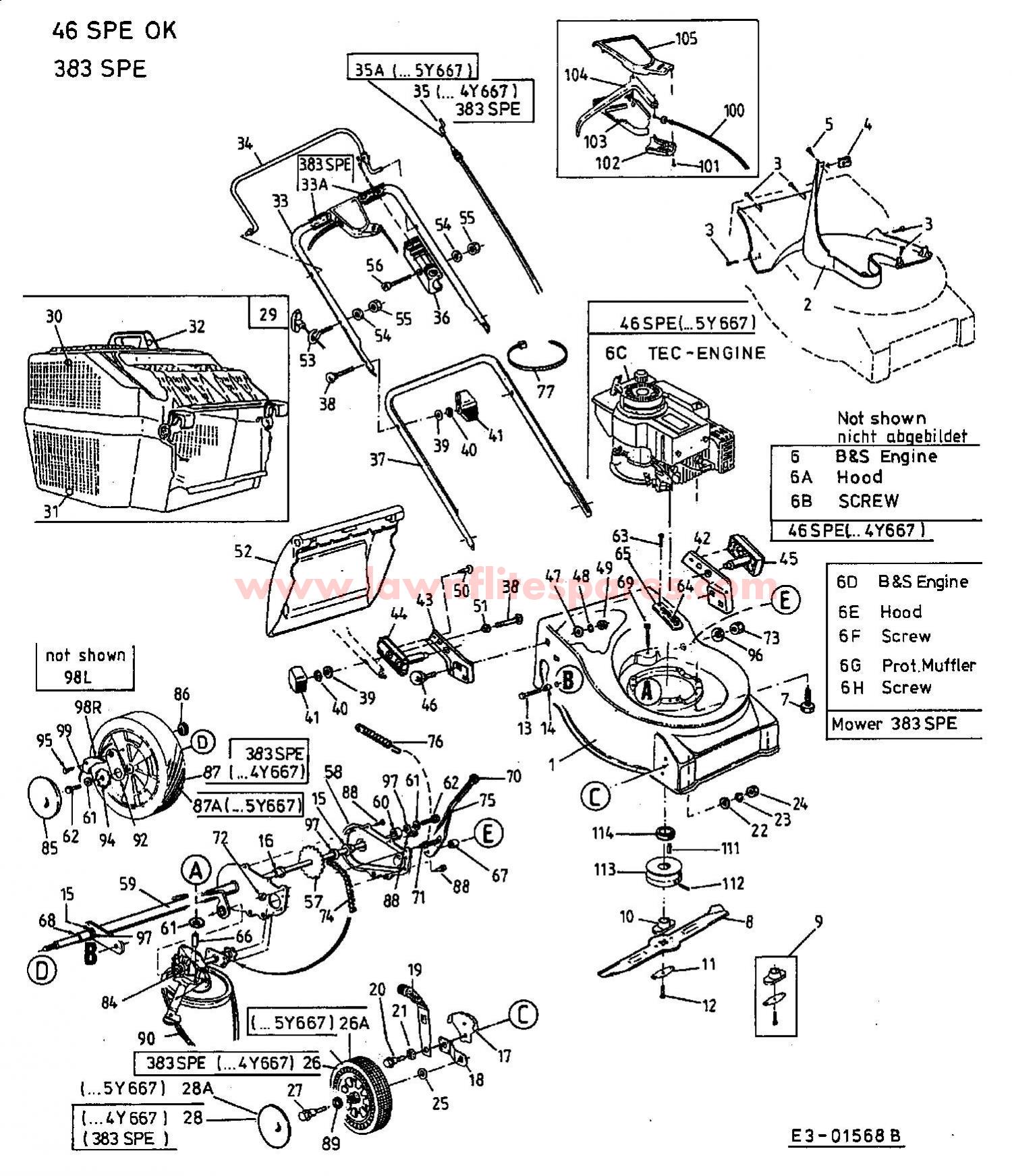

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	682-0253638	MOWER HOUSING RED	£205.98	Add
002	731-1633C	BAFFLE	£27.72	Add
003	710-1704	SCR:TORX:M6x20 WN 1452	£4.62	Add
004	712-0400	U NUT	£5.75	Add
005	710-1388	SCREW	£3.23	Add
006	752B1757B1	ENGINE 12H07-1757-B1 6.0 HP	N/A	POA
007	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
008	742-0818	BLADE	£45.38	Add
009	811-00248	BLADE LOCK ADAPTER-KIT	£40.38	Add
010	748-0376E	BLADE ADAPTOR	£26.64	Add
011	736-0524B	SPR BLADE BELL	£8.61	Add
012	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
013	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
014	750-0736	SPACER .383IDx.50OD x.18LG	£3.07	Add
015	741-0324A	BEARING	£5.54	Add
016	741-0522	HEX FLANGE BEARING	£4.65	Add
017	782-0659	ADJUSTING PLATE 079.30.313	£18.97	Add
018	782-0617A	PIVOT ARM	£15.40	Add
019	682-0271A	LVR ASM:HGT:L0-WHL 079.29.735	£10.83	Add
020	738-1030A	Screw 079.29.178	£9.23	Add
021	736-0651	NO LONGER AVAILABLE	N/A	POA
022	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
023	736-0708	Lockwasher 24.8190.18	£2.72	Add
024	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
025	736-0700	FLAT WASHER	£2.63	Add
026	734-1980	WHEEL	£38.31	Add
027	738-1045	BOLT	£10.03	Add
028	720-0249	HUB CAP	£4.89	Add
029	811-00908	NO LONGER AVAILABLE	N/A	POA
030	731-2178637	NO LONGER AVAILABLE	N/A	POA
031	731-2179637	GRASSBOX - LOWER PART - BLACK	£61.89	Add
032	731-2180A637	HANDLE	£8.32	Add
033	749-1319637	UPPER HANDLE	£23.79	Add
034	747-0824637	BRAKE BAIL	£19.77	Add
035	746-1067	CABLE	£19.28	Add
036	746-0883	BODY CABLE	£10.73	Add
037	749-1212637	NO LONGER AVAILABLE	N/A	POA
038	710-1719	BOLT	£4.89	Add
039	736-0700	FLAT WASHER	£2.63	Add
040	736-0689	L-WASHER	£3.26	Add
041	720-0368	WING NUT	£5.19	Add
042	782-3085638	HANDLE BRKT.L.H.	£23.69	Add
043	782-3084638	HANDLE BRKT.R.H.	£15.92	Add
044	731-2185A	BRKT:HNDL:RH	£9.47	Add
045	731-2186A	BRACKET	£9.47	Add
046	710-1780	Screw 22.3419.24	£2.98	Add
047	736-0700	FLAT WASHER	£2.63	Add
048	736-0708	Lockwasher 24.8190.18	£2.72	Add
049	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
050	000.02.469	SCREW (RED)	£3.20	Add
051	748-04036	INSULATING WASHER 079.06.307	£4.50	Add
052	731-2181637	DEFLECTOR	£24.68	Add
053	782-7627A	EYE BOLT	£6.28	Add
054	736-0668	WASHER	£2.23	Add
055	712-0691	HEX NUT M6 DIN 985	£2.66	Add
056	710-1396	SCREW M6x35 DIN 7985-4.8	£3.34	Add
057	638-0002B	AXLE	£67.32	Add
058	682-7516637	COVER ASSY-CHAIN	£56.91	Add
059	682-7517637	REAR AXLE	£91.43	Add
060	750-0289	SPACER	£10.42	Add
061	736-0270	BELL WASHER	£3.91	Add
062	710-0751	BOLT 069	£3.39	Add
063	710-1017	TAP SCREW	£2.97	Add
064	721-0216	SEAL-HGT ADJ	£8.82	Add
065	17323	PLATE-HGT ADJ	£9.86	Add
066	750-0589	SPACER	£5.50	Add
067	750-0624	SPCR:SHLDR:.387IDx.50ODx1.50LG	£13.43	Add
068	750-0664	SPACER	£3.90	Add
069	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
06A	731-1396A	ENGINE HOOD	£62.98	Add
06B	710-1256	SCR:HL:#8-18:1.250:PANPHI	£8.53	Add
06C	752T37206L	ENGINE TEC PRISMA 37 ES	N/A	POA
06D	752B1756B1	ENGINE B&S QTM 5.5 HP	N/A	POA
06E	751B281440	SHROUD ENG-BLACK-TIE	£55.83	Add
06F	710-1256	SCR:HL:#8-18:1.250:PANPHI	£8.53	Add
06G	751B224437	EXHAUST PROTECTION	£39.98	Add
06H	710-1268	SCREW HEX WASHER HD TAPP	£3.26	Add
070	720-0223	GRIP	£11.48	Add
071	711-0805	PIN:SHLD:3/8-24 x 1.43 LG	£7.82	Add
072	712-0262	NUT:JAMLK:3/8-24:GR2	£12.97	Add
073	712-0296	NUT:JAMLK:3/8-24	£3.59	Add
074	713-0443	CHAIN-ENDLESS	£10.65	Add
075	732-0580	NO LONGER AVAILABLE	N/A	POA
076	732-0740	SPR.EXTN: .73 OD X 4.28 LG	£12.75	Add
077	726-04055	CABLE TIE 000.70.563	£3.91	Add
084	618-0136	TRANSMISSION	£198.26	Add
085	720-0249	HUB CAP	£4.89	Add
086	712-0414	WELD NUT 1/4-20 THREAD	£3.77	Add
087	734-1978	WHEEL 8 X 2"	£35.46	Add
088	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
089	736-0504	WAVE WASHER	£2.84	Add
090	754-0327	V-BELT	£24.28	Add
092	16855	PAWL PLATE	£8.97	Add
094	748-0318	RATCHET WHEEL	£12.29	Add
095	738-0137A	BOLT	£8.58	Add
096	736-0105	BELL WASHER	£3.33	Add
097	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
099	10622B	NYLON SPRING	£5.07	Add
100	746-1039	CABLE	£21.27	Add
101	710-0841	SCREW	£4.89	Add
102	731-1059	CABLE MOUNTING CAP	£8.97	Add
103	731-1058	NO LONGER AVAILABLE	N/A	POA
104	731-0620A	LEVER	£13.21	Add
105	731-1057	NO LONGER AVAILABLE	N/A	POA
111	714-3009	SQUARE KEY	£3.33	Add
112	710-1769	THREADED PIN	£2.97	Add
113	756-0554A	2.62 DIA PULLEY	£70.01	Add
114	750-0968	NO LONGER AVAILABLE	N/A	POA
26A	734-1897	WHEEL	£17.58	Add
28A	720-0334662	HUB CAP WITH MTD LOGO, PREMIUM	£4.65	Add
33A	720-0347637	FOAM GRIP	£12.60	Add
35A	746-1066	CONTROL CABLE	£23.17	Add
87A	734-1979	WHEEL	£37.26	Add
98L	748-0188B	PAWL LH	£11.45	Add
98R	748-0381	PAWL RH	£10.30	Add
