LS80P

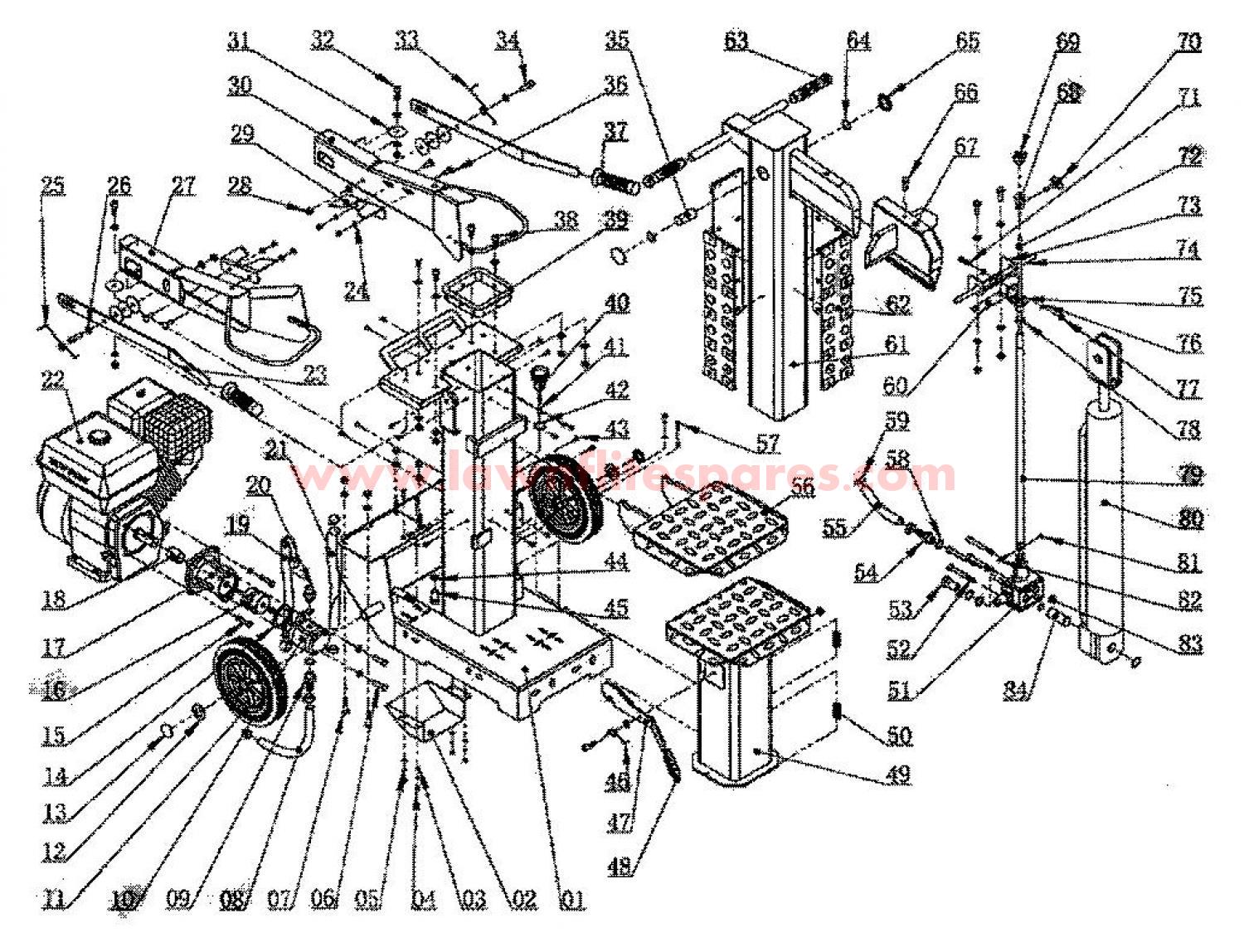

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1-LS80P	Upringht Tube Weldment	N/A	POA
002	2-LS80P	Protective Oil Pipe Plank	N/A	POA
003	3-LS80P	Washer 6	N/A	POA
004	4-LS80P	Nut M6	N/A	POA
005	5-LS80P	Spring Washer 6	N/A	POA
006	6-LS80P	Bolt M 10x35	N/A	POA
007	7-LS80P	Bolt M10x40	N/A	POA
008	8-LS80P	Epispastic Oil Pipe	£9.16	Add
009	9-LS80P	Nozzle 3/4-16-UNF-2BXM20x1.5	N/A	POA
010	10-LS80P	PUMP	£97.16	Add
011	11-LS80P	WHEEL	£32.70	Add
012	12-LS80P	WASHER	£4.00	Add
013	13-LS80P	WHEEL COVER	£4.17	Add
014	14-LS80P	Orientation Ring	N/A	POA
015	15-LS80P	Bolt M8x30	N/A	POA
016	16-LS80P	JOINT	£76.92	Add
017	17-LS80P	Joining	N/A	POA
018	18-LS80P	Limiting Cover	N/A	POA
019	19-LS80P	High Pressure Oil Hosel	£10.00	Add
020	20-LS80P	Tie-in	N/A	POA
021	21-LS80P	Protective Cover	£5.06	Add
022	22-LS80P	Engine(ZS) (OBSOLETE)	N/A
023	23-LS80P	Manipulative Handle	N/A	POA
024	24-LS80P	Washer 8	N/A	POA
025	25-LS80P	Spring (Lift)	£3.02	Add
026	26-LS80P	Washer 10	N/A	POA
027	27-LS80P	Left Armguard Hold assembly K	£42.89	Add
028	28-LS80P	Locknut M10	N/A	POA
029	29-LS80P	Clamp Timber Claw 11	£9.84	Add
030	30-LS80P	Right Armguard Hold assembly K	£42.89	Add
031	31-LS80P	Big Washer	N/A	POA
032	32-LS80P	Inner Hexangular Screw M10x30	N/A	POA
033	33-LS80P	Spring (Right)	£3.02	Add
034	34-LS80P	Inner Hexangular Screw M10x35	N/A	POA
035	35-LS80P	Above Axis 9	N/A	POA
036	36-LS80P	Quadrate Dia Bolt M8x25	N/A	POA
037	37-LS80P	Handle Cover K	£5.36	Add
038	38-LS80P	Inner Hexangular Screw M10x25	N/A	POA
039	39-LS80P	NO LONGER AVAILABLE	N/A	POA
040	40-LS80P	Oleaginous Cover K	£3.34	Add
041	41-LS80P	Oil Ruler K	£2.96	Add
042	42-LS80P	O-Ring 22.4x3.55	N/A	POA
043	43-LS80P	NO LONGER AVAILABLE	N/A	POA
044	44-LS80P	Washer Groupware 16	N/A	POA
045	45-LS80P	Bolt M 16x25	N/A	POA
046	46-LS80P	Handle Spring	£2.96	Add
047	47-LS80P	Lock Handle G	£6.85	Add
048	48-LS80P	Flat Handle Cover	N/A	POA
049	49-LS80P	Revolving Log Support	£110.41	Add
050	50-LS80P	Constringent Spring	£3.47	Add
051	51-LS80P	NO LONGER AVAILABLE	N/A	POA
052	52-LS80P	Inner Hexangular Screw M10x85	£6.81	Add
053	53-LS80P	Oil Stem	£15.33	Add
054	54-LS80P	Valve Injection Nozzle	N/A	POA
055	55-LS80P	Oil Return Pipe 16	£6.18	Add
056	56-LS80P	Log Support 9	N/A	POA
057	57-LS80P	Screw M6x20	N/A	POA
058	58-LS80P	Washer Groupware 20	N/A	POA
059	59-LS80P	Doble Steel Wire Hoop 22-28	N/A	POA
060	60-LS80P	Adjustive Washer	N/A	POA
061	61-LS80P	Knife Rest Pipe Assembly	N/A	POA
062	62-LS80P	SLIP PLANK	£11.45	Add
063	63-LS80P	Handle Cover	£4.43	Add
064	64-LS80P	Snap Washer-Shaft 25	N/A	POA
065	65-LS80P	Knife Rest Pipe Circinal Stem	N/A	POA
066	66-LS80P	Bolt M10x25	N/A	POA
067	67-LS80P	NO LONGER AVAILABLE	N/A	POA
068	68-LS80P	Fixed Set	£4.69	Add
069	69-LS80P	Three Star Nut	£4.85	Add
070	70-LS80P	Square Star Model Handle M8x35	£4.85	Add
071	71-LS80P	Bolt M8x40	N/A	POA
072	72-LS80P	Draw Rod 9	£19.15	Add
073	73-LS80P	Limiting Frame	N/A	POA
074	74-LS80P	Adjustive Lever	N/A	POA
075	75-LS80P	Curving Plank Subassembly	N/A	POA
076	76-LS80P	Spring Washer 8	N/A	POA
077	77-LS80P	Locknut M8	N/A	POA
078	78-LS80P	Thin NutM16x1.5	N/A	POA
079	79-LS80P	Draw Sleeve	£18.24	Add
080	80-LS80P	CYLINDER	£56.44	Add
081	81-LS80P	Locknut M6	N/A	POA
082	82-LS80P	Bolt M6x25	N/A	POA
083	83-LS80P	O-Ring 16x2.65G	£2.54	Add
084	84-LS80P	Nether Axis	N/A	POA
