MTD008391

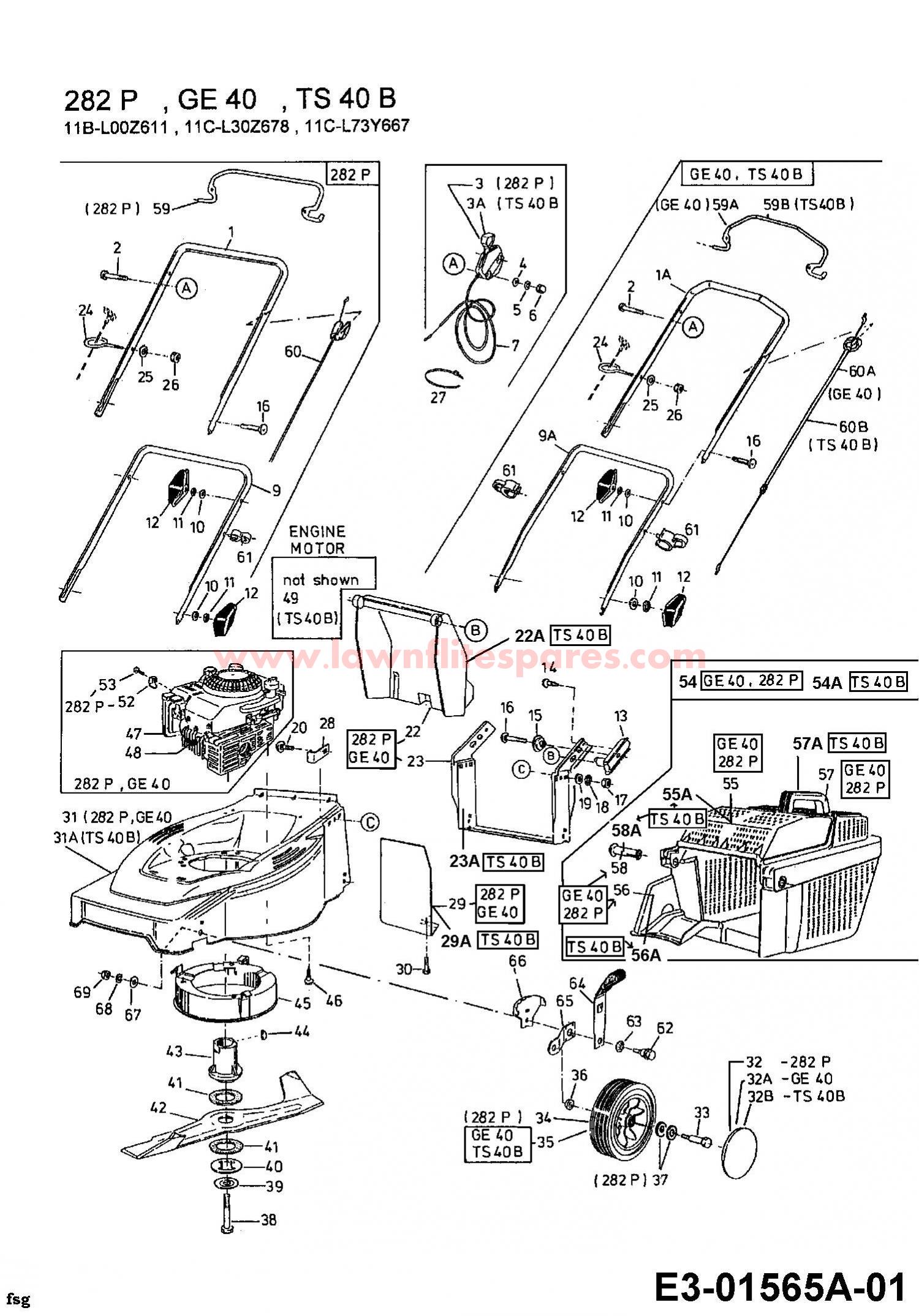

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	749-1036637	UPPER HANDLE	£45.85	Add
002	710-04278	SCR:M6x45mm:DIN 7985	£4.00	Add
003	079.13.632	THROTTLE LEVER ASSY K.P.	£35.99	Add
004	736-0668	WASHER	£2.23	Add
005	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
006	24.3423.14	NO LONGER AVAILABLE	N/A	POA
007	746-0989	BOWDEN WIRE GAS	£14.01	Add
009	749-1033637	NO LONGER AVAILABLE	N/A	POA
010	736-0700	FLAT WASHER	£2.63	Add
011	736-0689	L-WASHER	£3.26	Add
012	720-0368	WING NUT	£5.19	Add
013	731-04587A	NO LONGER AVAILABLE	N/A	POA
014	000.02.499	SCREW 50x14	£3.20	Add
015	748-04036	INSULATING WASHER 079.06.307	£4.50	Add
016	710-1719	BOLT	£4.89	Add
017	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
018	736-0708	Lockwasher 24.8190.18	£2.72	Add
019	736-0700	FLAT WASHER	£2.63	Add
01A	749-1197637	ERGO HANDLE ( GULL WING ) 749-1197	£32.45	Add
020	710-1775	BOLT:CRG:M8-1.25x12	£4.50	Add
022	731-1813A637	REAR FLAP 079.26.540	£44.39	Add
023	782-3075A638	NO LONGER AVAILABLE	N/A	POA
024	782-7627A	EYE BOLT	£6.28	Add
025	736-0668	WASHER	£2.23	Add
026	712-0691	HEX NUT M6 DIN 985	£2.66	Add
027	726-04055	CABLE TIE 000.70.563	£3.91	Add
028	782-3080	BRACKET	£5.50	Add
029	782-3076638	NO LONGER AVAILABLE	N/A	POA
030	710-1355	SCR:TT:M5-.8:10.00:HXFLG	£2.98	Add
031	782-0343638	MOWER HOUSING	£140.72	Add
032	079.30.306	WHEEL CAP	£7.43	Add
033	738-1057	SCR SHLDR	£12.24	Add
034	734-1879637	WHEEL DIA 180mm, BALL BEARING	£27.42	Add
035	734-1897	WHEEL	£17.58	Add
036	736-0695	WASHER	£3.97	Add
037	736-0758	WASH:BELL:25mmODx12.2IDx1.6 28.7112.11	£4.11	Add
038	000.02.282	BLADE SCREW	£8.32	Add
039	CP045911	WASHER (OBSOLETE) (OBSOLETE)	N/A
03A	631-0146668	THROTTLE CONTROL	£31.27	Add
040	782-7051	LOCK PLATE	£7.01	Add
041	736-0752	WASHER	£8.80	Add
042	742-0805	BLADE	£31.49	Add
043	079.77.230	BLADE BOSS	£40.15	Add
044	25.5239.09	DISC SPRING	£4.36	Add
045	731-2075	NO LONGER AVAILABLE	N/A	POA
046	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
047	752B2236B1	ENGINE:B&S 3.75 SPRINT 5#6	£408.53	Add
048	735-0639	NO LONGER AVAILABLE	N/A	POA
049	092.31.936	B-MOTOR TEC	£444.33	Add
052	731-2219	Clamp 079.11.346	£12.02	Add
053	710-1237	SCREW SELF TAP	£3.00	Add
054	818-60901	NO LONGER AVAILABLE	N/A	POA
055	731-1815637	GRASS CATCHER HALF-ABOVE	£40.98	Add
056	731-1814637	GRASS BOX LOWER	£61.94	Add
057	731-1816637	GRIP	£10.03	Add
058	731-04659	NO LONGER AVAILABLE	N/A	POA
059	747-1006637	NO LONGER AVAILABLE	N/A	POA
060	746-0978	NO LONGER AVAILABLE	N/A	POA
061	731-1820	CBL:GDE	£3.20	Add
062	738-1030A	Screw 079.29.178	£9.23	Add
063	736-0651	NO LONGER AVAILABLE	N/A	POA
064	682-0271A	LVR ASM:HGT:L0-WHL 079.29.735	£10.83	Add
065	782-0617A	PIVOT ARM	£15.40	Add
066	782-0659	ADJUSTING PLATE 079.30.313	£18.97	Add
067	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
068	736-0708	Lockwasher 24.8190.18	£2.72	Add
069	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
09A	749-1195637	LOWER HANDLE (ERGO-GULL-WING) 749-1195	£37.75	Add
12A	720-04047	WING NUT	£8.32	Add
22A	731-1813A668	DEFLECTOR	£48.31	Add
23A	782-3075A668	RAIL	£26.52	Add
29A	782-3076668	PROTECTION PLATE	£20.78	Add
31A	782-0343668	MOWER HOUSING	£125.80	Add
32A	720-0334662	HUB CAP WITH MTD LOGO, PREMIUM	£4.65	Add
32B	720-0339668	HUBCAP Ò180 MOSSGREEN	£15.09	Add
54A	811-00918	SG: GRASSBOX VERSION REWE	£157.29	Add
55A	731-1815668	UPPER GRASS CATCHER	£41.81	Add
56A	731-1814637	GRASS BOX LOWER	£61.94	Add
57A	731-1816668	GRIP ( GRASS BOX )	£13.71	Add
58A	731-04657	BEARING BOLT ( GRASS BOX ) 731-1817668	£6.91	Add
59A	747-1049637	BRAKE LEVER	£24.30	Add
59B	747-1049668	BRAKE BAIL	£21.49	Add
60A	746-1051	CABLE BRAKE	£22.19	Add
60B	746-1050	BRAKE CABLE	£30.14	Add
