MTD007752

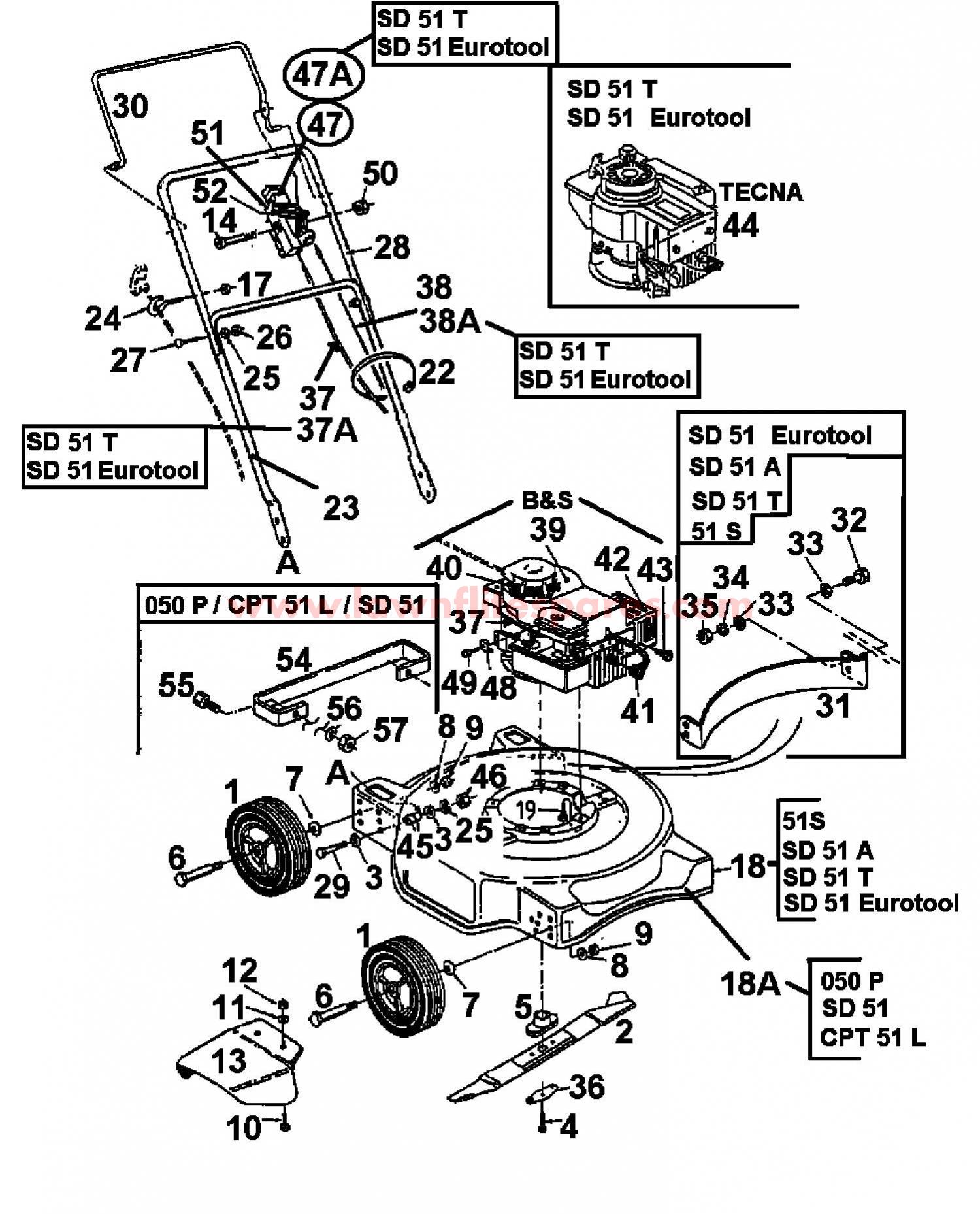

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	734-1779	WHL7X1.5 STAR DIAMWHIT INTEG P	£30.14	Add
002	742-0640	BLADE:20":STD CUT W/STAR	£26.93	Add
003	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
004	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
005	811-00248	BLADE LOCK ADAPTER-KIT	£40.38	Add
006	738-0533	SHLD SCREW	£6.33	Add
007	736-0105	BELL WASHER	£3.33	Add
008	736-0331	BELL WASHER	£3.95	Add
009	712-0798	HEX. NUT	£7.61	Add
010	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
011	736-0685	WASHER	£3.26	Add
012	712-0691	HEX NUT M6 DIN 985	£2.66	Add
013	17322	CHUTE DEFLECTOR	£42.55	Add
014	21.6421.83	Screw	N/A	POA
017	712-0691	HEX NUT M6 DIN 985	£2.66	Add
018	17035A	DECK	N/A	POA
019	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
022	726-04055	CABLE TIE 000.70.563	£3.91	Add
023	749-04037637	HANDLE LOWER	£72.14	Add
024	782-7627A	EYE BOLT	£6.28	Add
025	04512-50080	NO LONGER AVAILABLE	N/A	POA
026	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
027	710-1718	NO LONGER AVAILABLE	N/A	POA
028	749-1029637	NO LONGER AVAILABLE	N/A	POA
029	21.1441.76	NO LONGER AVAILABLE	N/A	POA
030	747-0824637	BRAKE BAIL	£19.77	Add
031	14554	GUIDE PLATE REAR	N/A	POA
032	710-1376	CAP SCREW	£4.50	Add
033	736-0700	FLAT WASHER	£2.63	Add
034	04512-50080	NO LONGER AVAILABLE	N/A	POA
035	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
036	736-0524B	SPR BLADE BELL	£8.61	Add
037	746-0842	NO LONGER AVAILABLE	N/A	POA
038	746-0553	BRAKE CABLE 36" LG,RED	£22.65	Add
039	752B2007E1	ENG:B&S 3.5HP CLASSIC	£305.25	Add
040	751B224819	NO LONGER AVAILABLE	N/A	POA
041	735-0639	NO LONGER AVAILABLE	N/A	POA
042	751B225250	MUFFLER PROTECTION	£46.34	Add
043	710-1268	SCREW HEX WASHER HD TAPP	£3.26	Add
044	092.31.904	ENGINE TEC VANTAGE 35 NEW	N/A	POA
045	750-0910	NO LONGER AVAILABLE	N/A	POA
046	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
047	811-00836	THROTTLE BOX CPL.	£18.17	Add
048	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
049	710-1237	SCREW SELF TAP	£3.00	Add
050	712-0691	HEX NUT M6 DIN 985	£2.66	Add
051	746-0875	THROTTLE BOX BODY	£17.98	Add
052	746-0876	LEVER-THROTTLE	£12.97	Add
054	782-3079637	BRACKET	£13.16	Add
055	710-1376	CAP SCREW	£4.50	Add
056	04512-50080	NO LONGER AVAILABLE	N/A	POA
057	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
18A	682-0050A	NO LONGER AVAILABLE	N/A	POA
37A	746-0844	NO LONGER AVAILABLE	N/A	POA
47A	811-00844	THROTTLE BOX CPL.	£18.17	Add
