MTD011126

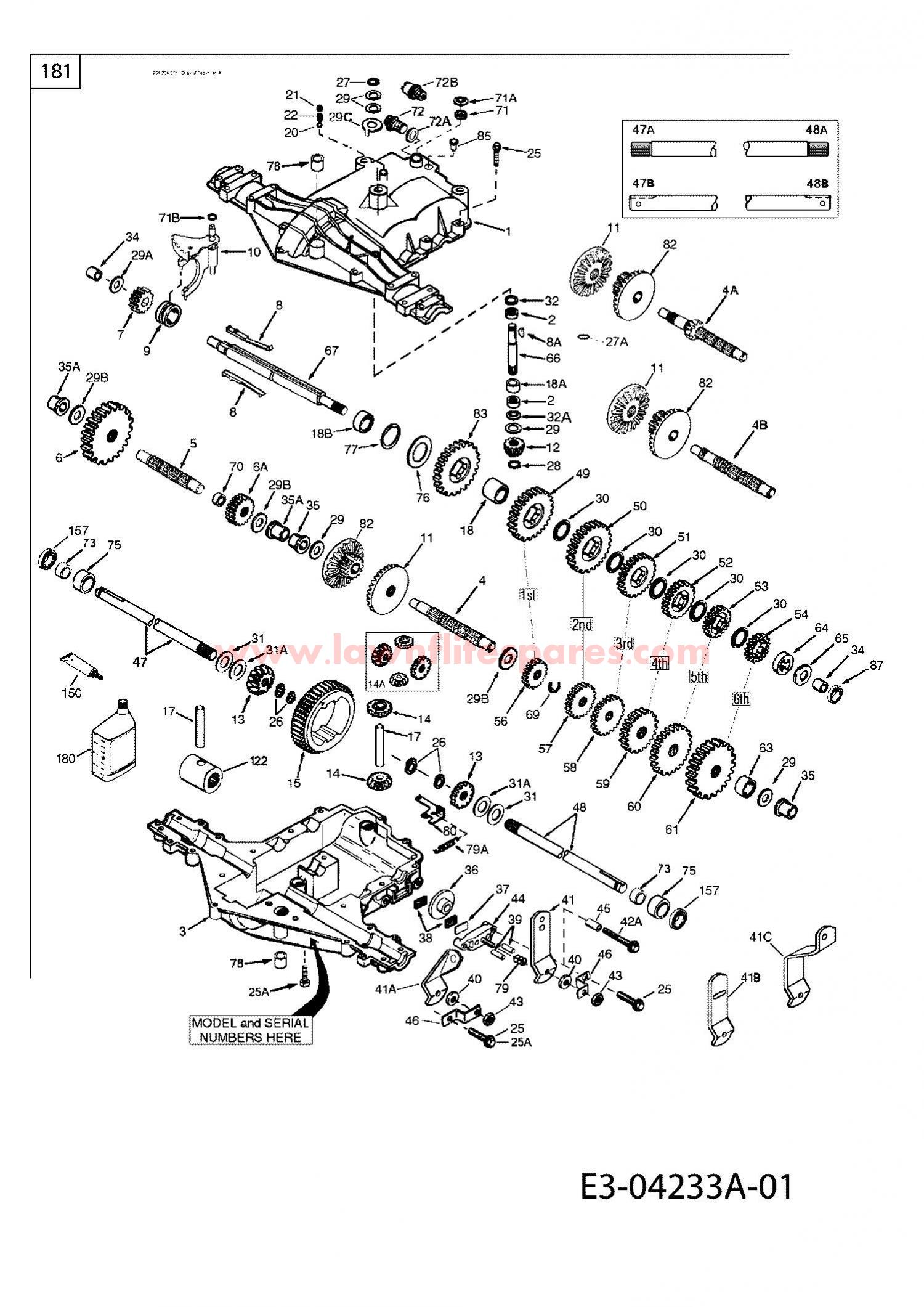

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	TC-772147	COVER	N/A	POA
002	780086A	BALL BEARING	N/A	POA
003	TC-770128A	HOUSING ASSY-MAIN	N/A	POA
005	TC-776409	MAIN SHAFT	N/A	POA
006	TC-778364	SPUR GEAR 38 T	N/A	POA
007	TC-778330	SPUR GEAR 11 T	N/A	POA
008	TC-792180A	SHIFT KEY SET ( QTY. 2)	£144.14	Add
009	092.31.127	Shift collar	N/A	POA
010	TC-784378	SELECTOR FORK	N/A	POA
011	TC-778334	BEVEL GEAR 30 T	N/A	POA
012	TC-778309	INPUT BEVEL PINION 13 T	N/A	POA
013	TC-778368	BEVEL GEAR 13 T	N/A	POA
014	TC-778368	BEVEL GEAR 13 T	N/A	POA
015	TC-778370	RING GEAR 43 T	N/A	POA
017	TC-786188	DRIVE PIN	N/A	POA
018	092.31.091	Spacer	£82.19	Add
020	090.49.266	Ball steel	£23.33	Add
021	TC-792211	SCREW 3/8-16X3/8"	N/A	POA
022	090.49.268	Spring	£17.87	Add
025	090.49.264	Screw	£17.18	Add
026	092.31.096	Ring retainer	£13.44	Add
027	090.34.633	Ring retainer	£18.36	Add
028	090.34.645	Ring retainer	£19.64	Add
029	090.34.629	Thrust washer	£19.64	Add
030	090.49.269	Thrust washer	£33.00	Add
031	090.34.590	Thrust washer	£9.89	Add
032	TC-788083	OIL SEAL	N/A	POA
034	TC-780194	BUSHING	N/A	POA
035	TC-780193	BEARING-FLANGE	N/A	POA
036	092.31.233	BRAKE DISC	N/A	POA
037	090.49.891	Plate brake pad	£42.25	Add
038	TC-799021A	BRAKE PADS	£53.09	Add
039	090.34.634	Dovel pin	£29.78	Add
040	092.31.235	SCHEIBE	£13.94	Add
041	TC-790104	BRAKE LEVER	N/A	POA
042	TC-792177	SCREW 1/4-20X1-3/8"	N/A	POA
043	090.49.895	Nut	£16.41	Add
044	090.49.892	Holder	£111.88	Add
046	092.31.119	Bracket brake	£50.80	Add
047	TC-775146	AXLE (10.719" LONG)	N/A	POA
048	TC-775147	AXLE (15.312" LONG)	N/A	POA
049	TC-778338	GEAR,27T DRIVE	N/A	POA
04B	TC-776406	COUNTERSHAFT	N/A	POA
050	TC-778342	SPUR GEAR 22 T	N/A	POA
051	TC-778313	SPUR GEAR 19 T	£88.58	Add
052	TC-778350	GEAR	N/A	POA
056	TC-778337	SPUR GEAR 13 T	£86.57	Add
057	TC-778341	GEAR,18T SHIFT	N/A	POA
058	TC-778351	SPUR GEAR 21 T	N/A	POA
059	TC-778349	SPUR GEAR	N/A	POA
063	092.31.115	SLEEVE	N/A	POA
064	092.31.112	Spacer	£16.10	Add
065	TC-780189	washer	N/A	POA
066	TC-776472	INPUT SHAFT	N/A	POA
067	TC-776396	BRAKE SHAFT	N/A	POA
069	TC-792170	Circlip	N/A	POA
06A	TC-778369	GEAR, 15T DRIVE, SECOND	N/A	POA
070	TC-786187	Spacer	N/A	POA
076	092.31.258	Thrust washer	N/A	POA
077	092.31.273	USE 716-0115	N/A	POA
079	092.31.274	Spring	N/A	POA
082	TC-778363	BEVEL 30T + SPUR GEAR 13T	N/A	POA
083	TC-778338	GEAR,27T DRIVE	N/A	POA
085	TC-792154	OIL FILL PLUG	N/A	POA
087	TC-788089A	OIL SEAL	£26.66	Add
150	788093A		N/A	POA
157	TC-788088A	OIL SEAL	N/A	POA
180	730229B		N/A	POA
181	618-04521	TRANSMISSION	£408.14	Add
25A	TC-792177	SCREW 1/4-20X1-3/8"	N/A	POA
27A	TC-792227	Circlip	N/A	POA
29A	092.31.270	SCHEIBE	£4.85	Add
29B	092.31.136	Washer	N/A	POA
31A	TC-780195	washer	N/A	POA
32A	090.34.608	O-Ring	£29.18	Add
35A	TC-780197	FLANGED BUSHING	N/A	POA
71B	TC-788092	O-RING	N/A	POA
