MTD009103

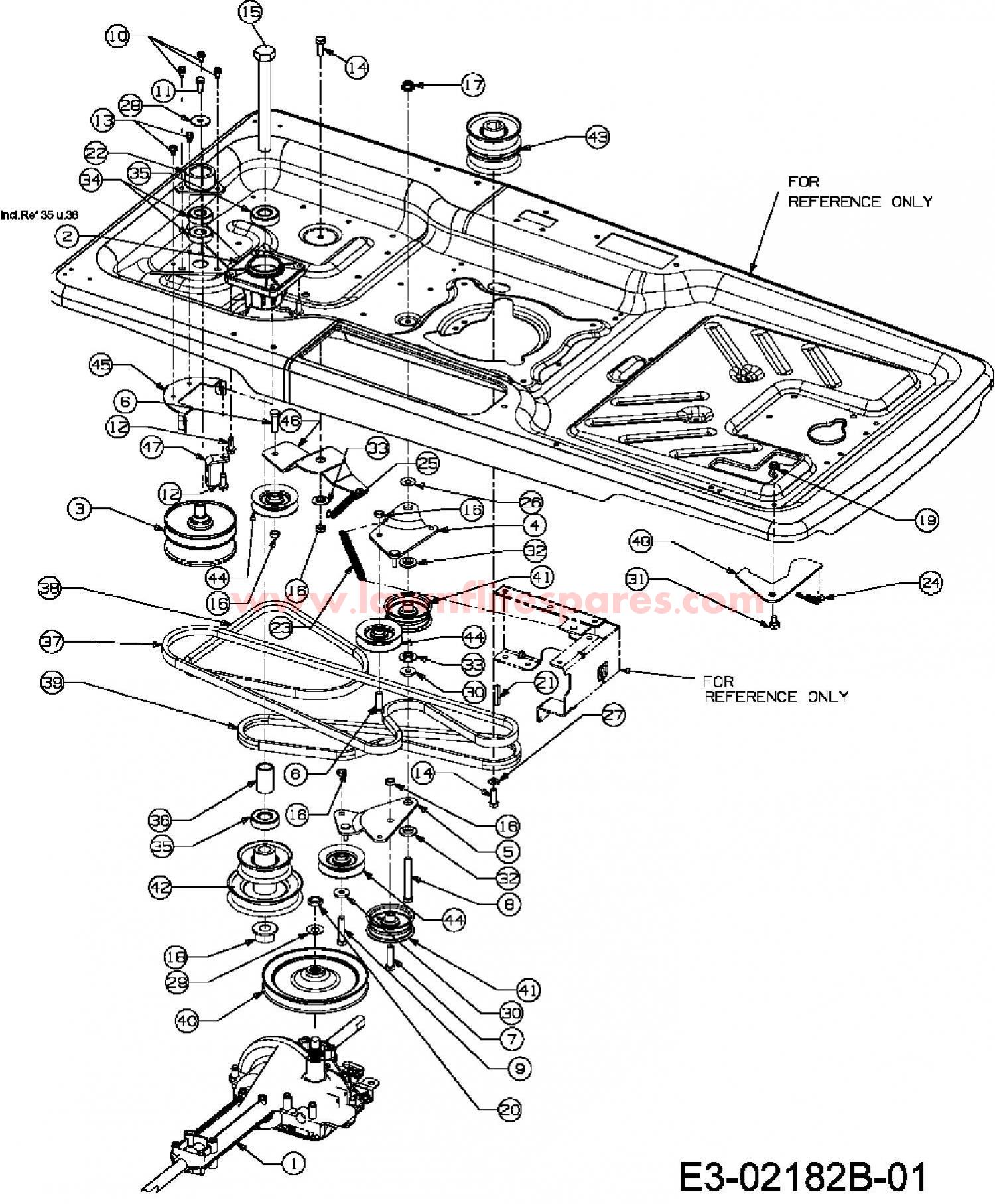

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-0564A	TRANS ASM: SNGL SPD 618-0564	£673.86	Add
002	618-0452	HSG COMPL:SPDL:MACHINED	£102.61	Add
003	656-05011	PULLEY	£81.80	Add
004	683-0446-Z	BRKT ASM:IDLR:DR	£13.65	Add
005	683-0447-Z	NO LONGER AVAILABLE	N/A	POA
006	710-0191	HEX BOLT (RED)	£7.13	Add
007	710-0459A	TIE ROD BOLT	£3.62	Add
008	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
009	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	710-0627	HEX SCREW	£3.32	Add
012	710-0650	SCREW	£3.58	Add
013	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
014	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add
015	710-1812	HHCS:M20 X 2.5:160	£20.18	Add
016	712-0296	NUT:JAMLK:3/8-24	£3.59	Add
017	712-04065	NUT	£4.02	Add
018	712-0695	NUT:FLG:M20-2.5 DIN 6923	£6.63	Add
019	712-3004A	HEX FLANGE NUT	£2.97	Add
020	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add
021	714-0133	SQUARE KEY	£10.83	Add
022	718-04012	CUP BEARING	£20.54	Add
023	732-0308	EXTENSION SPRING	£10.04	Add
024	732-0418	SPR:EXTN:.38 OD X 2.10	£5.21	Add
025	732-0815A	SPRING	£15.73	Add
026	736-0101	WASH:FLAT:.406 X 1.00 X .030	£12.63	Add
027	736-0169	L. WASHER	£2.89	Add
028	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add
029	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add
030	736-3052	WASH:FLAT:.406 X 1.00 X .105	£3.77	Add
031	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add
032	738-0347	SPACER	£4.16	Add
033	738-0968	SPACER	£11.79	Add
034	741-0600	BRG BALL 17x40x12 6203 DS	£18.36	Add
035	741-0919B	BALL BEARING	£28.69	Add
036	750-0952	SPCR:.792 X 1.060 X 1.800 LG	£7.88	Add
037	754-04111	BELT	£55.64	Add
038	754-0453	V BELT	£53.72	Add
039	754-0494	BELT	£37.92	Add
040	756-0650	PUL:TRANS:7.0x5/8-36	£84.67	Add
041	756-0981B	PUL:IDLR:FLAT 2.75 OD	N/A	POA
042	756-1195	PULLEY	£104.60	Add
043	756-1200	PUL:ENG:DBL 3.56 X 3.56 (OBSOLETE)	N/A
044	756-04241	PULLEY	£28.01	Add
045	783-04989	KEEPR:BELT:DX 60	N/A	POA
046	783-0528	BRKT:IDLR:VARI SPEED TRANS	£19.17	Add
047	783-1292637	CABLE BRACKET 783-1292	£13.05	Add
048	783-1341-Z	BRKT:LOCK:PED	£21.60	Add
