MTD009102

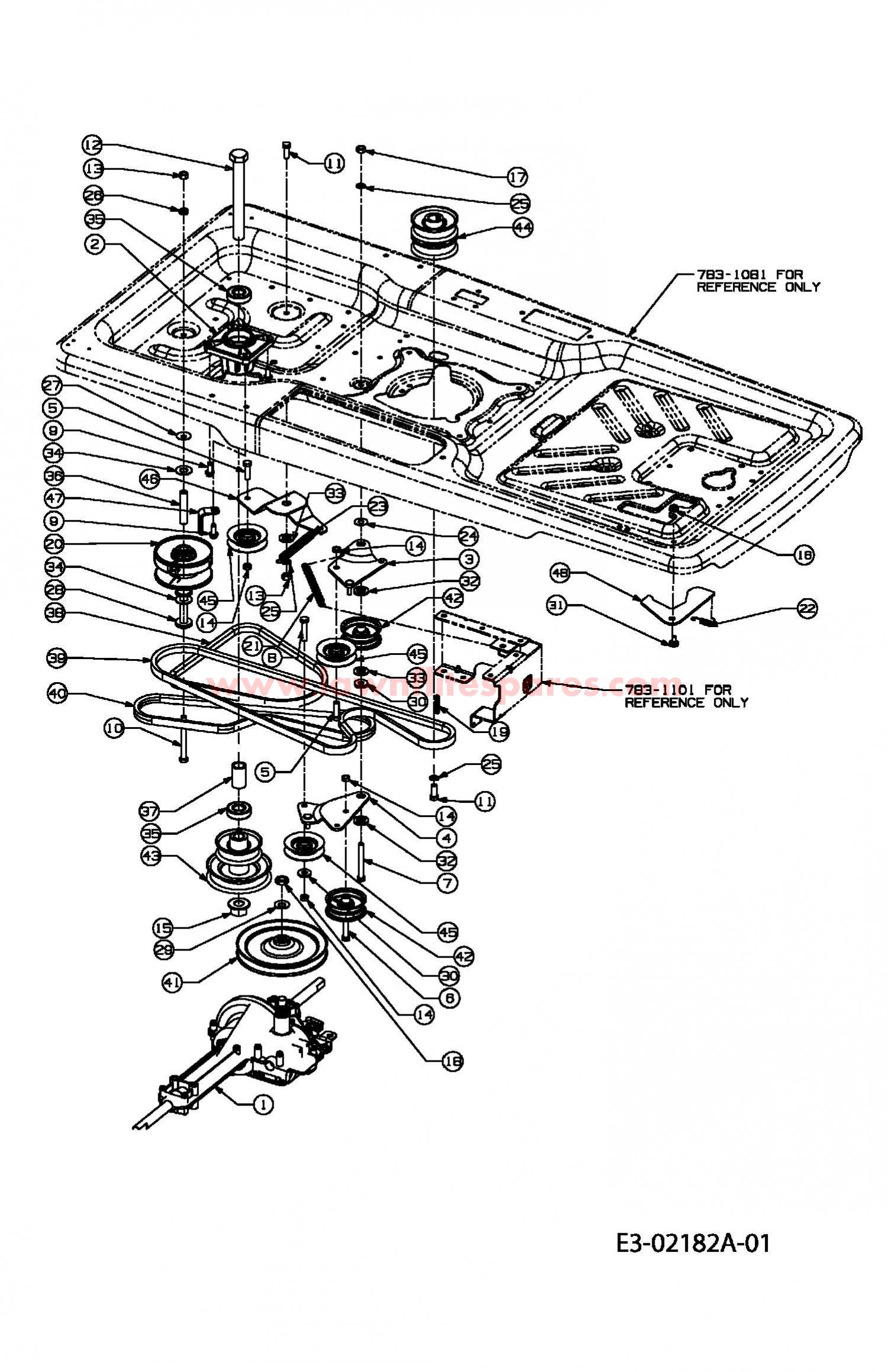

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-0564A	TRANS ASM: SNGL SPD 618-0564	£673.86	Add
002	618-0452	HSG COMPL:SPDL:MACHINED	£102.61	Add
003	683-0446	BRKT ASM:IDLR:DR	£16.60	Add
004	683-0447	BRKT ASM:IDLR:DR	£17.92	Add
005	710-0191	HEX BOLT (RED)	£7.13	Add
006	710-0459A	TIE ROD BOLT	£3.62	Add
007	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
008	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
009	710-0650	SCREW	£3.58	Add
010	710-0902	SCREW HHCS:3/8-24:3.75:GR5:STD	£15.40	Add
011	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add
012	710-1812	HHCS:M20 X 2.5:160	£20.18	Add
013	712-0241	HEX NUT 3/8-24	£2.79	Add
014	712-0296	NUT:JAMLK:3/8-24	£3.59	Add
015	712-0695	NUT:FLG:M20-2.5 DIN 6923	£6.63	Add
016	712-3004A	HEX FLANGE NUT	£2.97	Add
017	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
018	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add
019	714-0133	SQUARE KEY	£10.83	Add
020	717-0884	NO LONGER AVAILABLE	N/A	POA
021	732-0308	EXTENSION SPRING	£10.04	Add
022	732-0418	SPR:EXTN:.38 OD X 2.10	£5.21	Add
023	732-0814	SPRING 56 DIA x 5.52 LG	£11.51	Add
024	736-0101	WASH:FLAT:.406 X 1.00 X .030	£12.63	Add
025	736-0169	L. WASHER	£2.89	Add
026	736-0217	H.L. WASHER (RED)	£4.89	Add
027	736-0219	BELL WASHER (RED)	£3.58	Add
028	736-0247	F.I. WASH	£8.70	Add
029	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add
030	736-3052	WASH:FLAT:.406 X 1.00 X .105	£3.77	Add
031	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add
032	738-0347	SPACER	£4.16	Add
033	738-0968	SPACER	£11.79	Add
034	741-0405	NO LONGER AVAILABLE	N/A	POA
035	741-0919B	BALL BEARING	£28.69	Add
036	750-0705	SLV:SPCR:.56:2.71	£18.27	Add
037	750-0952	SPCR:.792 X 1.060 X 1.800 LG	£7.88	Add
038	754-0453	V BELT	£53.72	Add
039	754-0493	BELT	£33.95	Add
040	754-0494	BELT	£37.92	Add
041	756-0650	PUL:TRANS:7.0x5/8-36	£84.67	Add
042	756-0981B	PUL:IDLR:FLAT 2.75 OD	N/A	POA
043	756-1195	PULLEY	£104.60	Add
044	756-1200	PUL:ENG:DBL 3.56 X 3.56 (OBSOLETE)	N/A
045	756-04241	PULLEY	£28.01	Add
046	783-0528	BRKT:IDLR:VARI SPEED TRANS	£19.17	Add
047	783-1292637	CABLE BRACKET 783-1292	£13.05	Add
048	783-1341-Z	BRKT:LOCK:PED	£21.60	Add
