FG109_6000

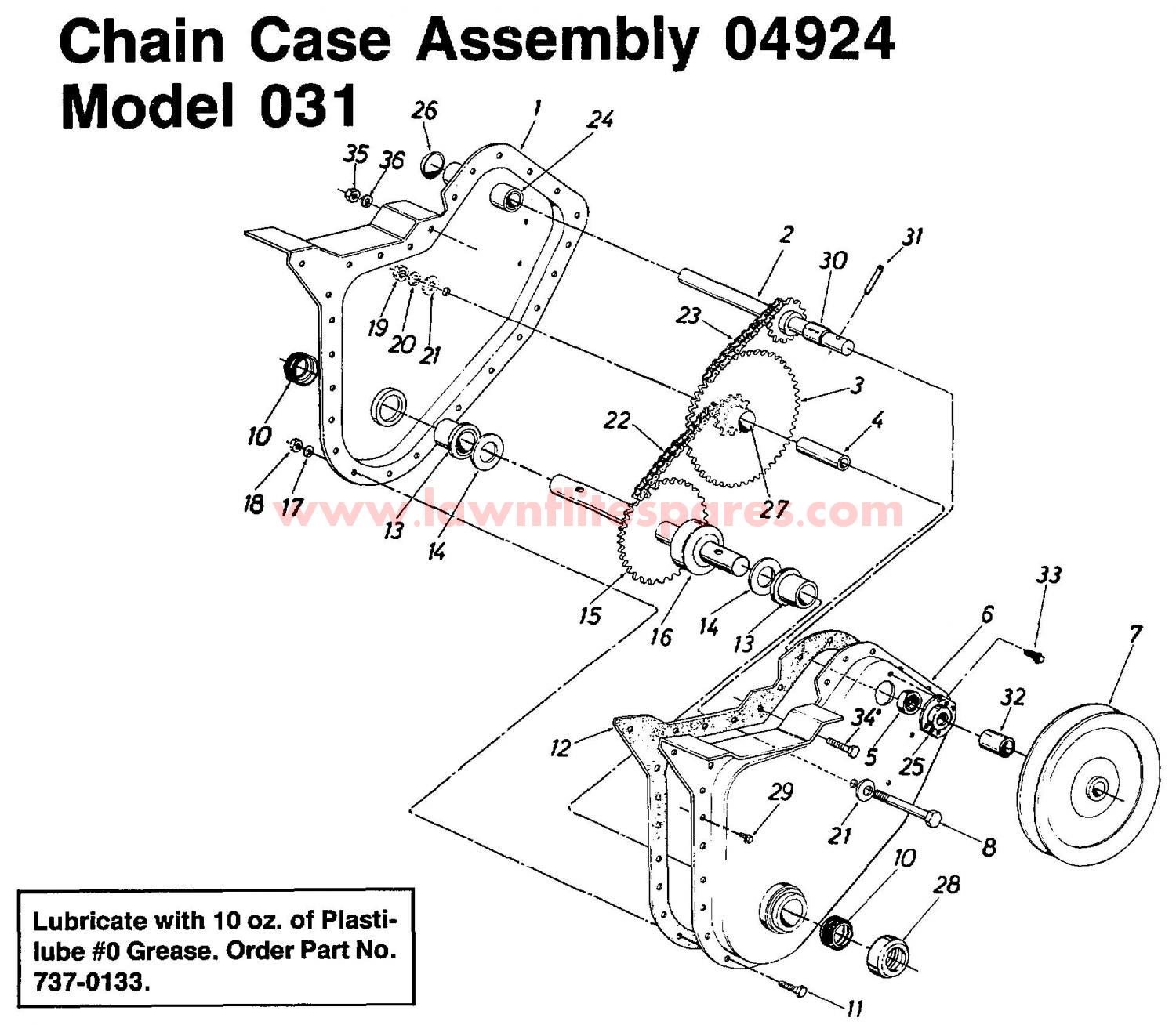

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG109_6000

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
713-0139 #35 MASTER LINK £10.27 Add
713-0154 KETTENVERSCHLUSSGLIED 090.65.089 £9.20 Add
001 4926 CHAIN CASE ASS'Y.--R.H. N/A POA
002 4756 INPUT SHAFT ASS'Y. £121.84 Add
003 4757 HUB AND SPROCKET ASS'Y. N/A POA
004 750-0351 BEARING INNER RACE £20.48 Add
005 741-0155 BRG:BALL:.62x1.38x.43:1623:DS £27.63 Add
006 15863 CHAIN CASE ASS'Y.--L.H. £127.89 Add
007 756-0287 CHAIN CASE PULLEY 5 1/2" X 1/2" £86.33 Add
008 710-0369 SCRE.HHCS:3/8-24:2.50:GR5:SPEC £10.74 Add
010 721-0157 SEAL £12.40 Add
011 710-0195 HEX BOLT £2.50 Add
012 721-0156A GASKET 721-0156 £18.17 Add
013 741-0227 FLANGE BRG. .879" I.D. £18.94 Add
014 736-0265 FL-WASH. .88" I.D. X 1.5" £4.78 Add
015 4920 TINE SHAFT ASS'Y. £73.77 Add
016 750-0354A SPACER 7/8" I.D. X 2" O.D. X .68" LG. £17.94 Add
017 736-0329 L. WASHER £1.28 Add
018 712-0138 NUT £2.57 Add
019 712-0116 HEX NUT £3.12 Add
020 736-0169 L. WASHER £2.45 Add
021 736-0219 BELL WASHER (RED) £2.82 Add
022 713-0269 CHAIN #420 1/2" PITCH X 37 LINKS £43.39 Add
023 713-0145 CHAIN #35 .375" PITCH X 49 LINKS £43.07 Add
024 748-0154 BEARING .62" I.D. X .813" £15.60 Add
025 5034 BEARING HOUSING N/A POA
026 726-0164 EXPANSION PLUG 13/16" DIA. £5.41 Add
027 741-0228 BEARING £17.99 Add
028 731-0486 DUST CAP £19.56 Add
029 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
030 750-0471 SPACER (PM), .63 X .77 X .385 £3.93 Add
031 715-0114A SPRING PIN 715-0114 £4.45 Add
032 750-0550 SPACER .647 X 1.25" £13.00 Add
033 710-0653 HEX SCREW, 1/4-20 X 3/8" £3.61 Add
034 710-3008 HEX BOLT £2.57 Add
035 712-3010 NUT £2.35 Add
036 736-0119 LOCK WASHER 5/16 £2.81 Add
