FG109_6200

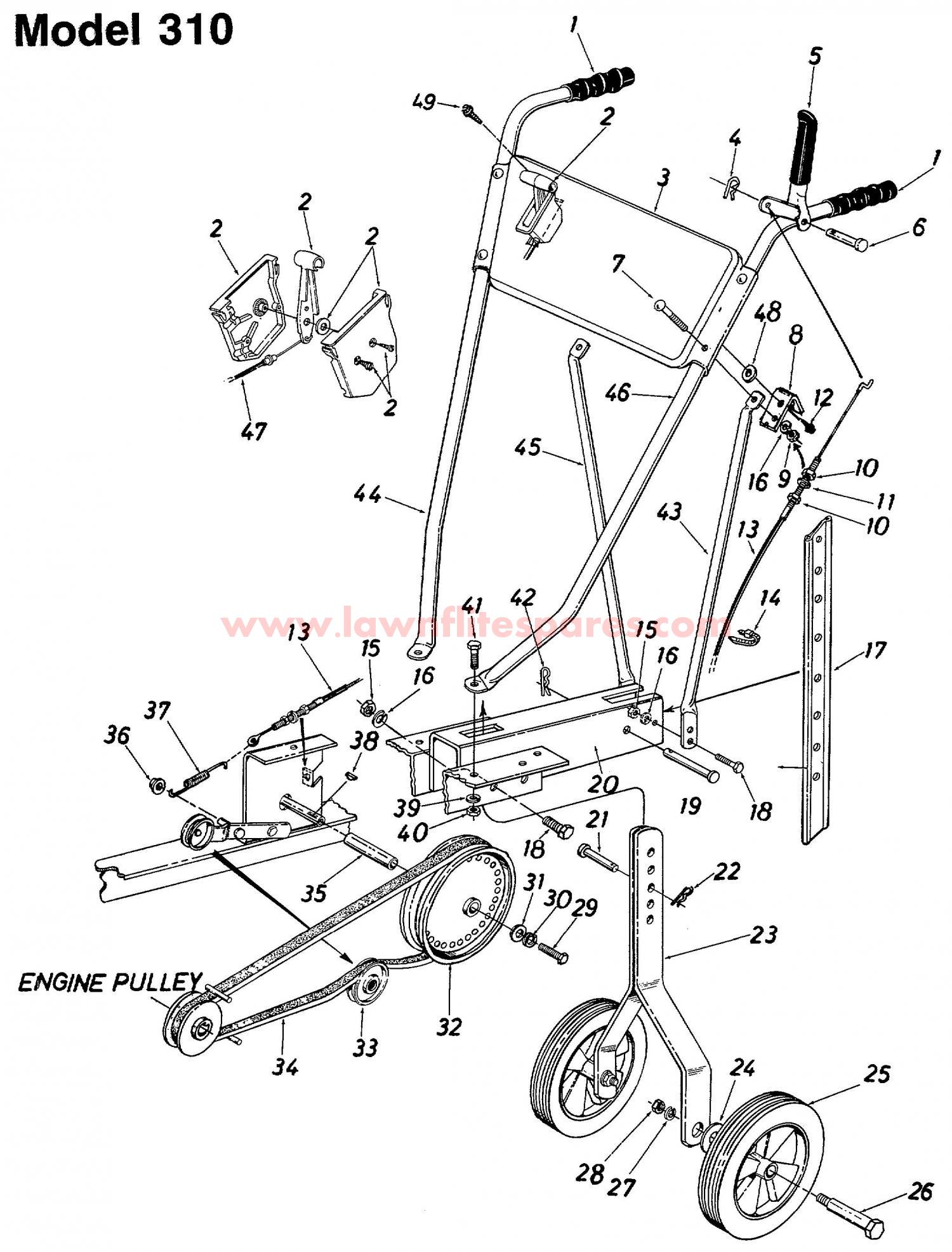

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	720-0204	GRIP:1.0 ID x 4.7 LG	£12.60	Add
002	931-0823A	THROTTLE CONTROL BOX ASSY	£25.49	Add
003	784-0036A	HANDLE PANEL	£64.19	Add
004	714-0104	PIN INTERNAL COTTER	£2.78	Add
005	784-0008	CLUTCH GRIP ASS'Y.	£23.72	Add
006	711-0415	CLEVIS PIN	£5.28	Add
007	710-0458	NO LONGER AVAILABLE	N/A	POA
008	15093C	CABLE SUPPORT BRACKET	£9.58	Add
009	712-3010	NUT 5/16 x 18	£2.77	Add
010	712-0256	NUT:JAM:5/16-24:GR2	£11.84	Add
011	736-0119	LOCK WASHER 5/16	£3.33	Add
012	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
013	746-0508	CLUTCH CONTROL CABLE	£77.82	Add
014	725-0157	NO LONGER AVAILABLE	N/A	POA
015	712-3010	NUT 5/16 x 18	£2.77	Add
016	736-0119	LOCK WASHER 5/16	£3.33	Add
017	4668	DEPTH BAR	£59.96	Add
018	710-3008	HEX BOLT	£3.03	Add
019	711-0761	PIN	£22.29	Add
020	784-0005	TAILPIECE ASS'Y.	£67.78	Add
021	711-0755	CLEVIS PIN 3/8" DIA. X 2.50" LG.	£6.72	Add
022	714-0149B	COTTER PIN	£3.58	Add
023	6813	WHEEL BRACKET ASS'Y.	£120.94	Add
024	736-0253	WASH:BLVL:.525 x 1.000 x.050	£3.87	Add
025	753-04874	WHEEL ASS'Y. COMP.--PLASTIC 734-0968	£43.32	Add
025	734-0585	WHEEL ASS'Y. COMP.--STEEL	£99.18	Add
025	741-0116	WHEEL BEARING (USED W/STEEL WHEEL)	£8.17	Add
026	738-0318	NO LONGER AVAILABLE	N/A	POA
027	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add
028	712-0200A	NUT, HEX JAM W/PLASTIC PATCH	£4.70	Add
029	710-0412	HHCS:1/4-28:.75:GR5:STD	£3.51	Add
030	736-0329	L. WASHER	£3.26	Add
031	736-0176	WASHER:FLAT:.265 x .938 x .120	£5.70	Add
032	756-0389A	PULLEY 6.00" O.D.	£96.60	Add
033	756-0137	NO LONGER AVAILABLE	N/A	POA
034	754-0190	"V"-BELT 1/2" PITCH X 39" LG.	£40.54	Add
035	750-0472	NO LONGER AVAILABLE	N/A	POA
036	726-0106	CAP SPEED NUT	£3.33	Add
037	732-0387	SPRING-EXTENSION 092.15.315	£9.80	Add
038	714-0388	KEY-WOODRUFF NR.61 3/16X5/8"	£12.14	Add
039	736-0119	LOCK WASHER 5/16	£3.33	Add
040	712-3010	NUT 5/16 x 18	£2.77	Add
041	710-3008	HEX BOLT	£3.03	Add
042	714-0149B	COTTER PIN	£3.58	Add
043	749-0633	NO LONGER AVAILABLE	N/A	POA
044	749-0626	HANDLE BAR--R.H.	£47.28	Add
045	749-0632	HANDLE SUPPORT BRACKET--R.H.	£27.04	Add
046	749-0627	HANDLE BAR--L.H.	£49.18	Add
047	746-0503	THROTTLE CONTROL WIRE	£26.45	Add
048	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add
049	710-0779A	SELF TAP SCREW	£3.58	Add
