SLI_LF48SPBR

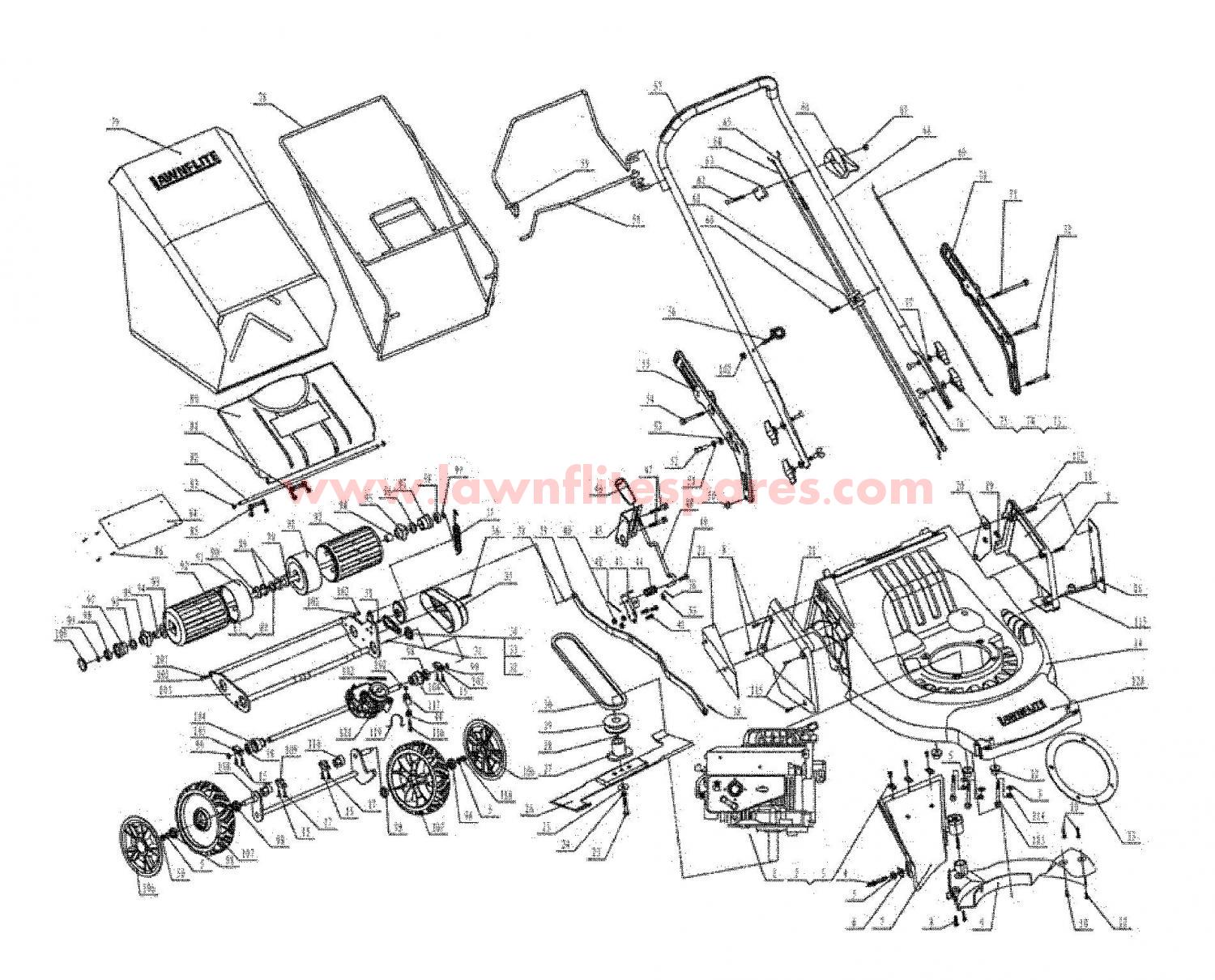

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	SN1	Engine (5.5HP)	£1,041.00	Add
002	XX101258	M6x16 Bolt	£2.96	Add
003	XX101259	M6 Nut	£2.12	Add
004	XX101209	Bolt	£4.88	Add
005	XX101264	Washer	£4.20	Add
006	XX101210	Nut	£4.00	Add
007	XX101211	Plastic Plate	£39.69	Add
008	XX101028	Self Tapping Screw	£2.96	Add
009	XX101212	Belt Cover	£52.35	Add
010	XX101265	Self Tapping Screw	£2.96	Add
011	XX101266	Self Tapping Screw	£2.96	Add
012	XX101213	Bush	£16.18	Add
013	XX101214	Washer	£33.35	Add
014	XX101393	Deck (ABS)	£343.80	Add
015	XX101267	Self Tapping Screw	£2.12	Add
016	XX101216	LH Lower Support Plate	£16.88	Add
017	XX101268	Self Tapping Screw	£3.62	Add
018	XX101217	LH Lower Handle Cover	£16.88	Add
019	SN19	Bolt	£2.96	Add
020	XX101218	Bracket	£9.63	Add
021	XX101219	RH Lower Handle Cover	£16.88	Add
022	XX101220	RH Lower Support Plate	£16.88	Add
023	XX101221	BLADE BOLT (OBSOLETE)	N/A
024	XX101067	WASHER 10	£2.14	Add
025	XX101036	WASHER (OBSOLETE) (OBSOLETE)	N/A
026	XX101394	CUTTER BLADE (OBSOLETE)	N/A
027	XX101223	BLADE FLANGE (OBSOLETE)	N/A
028	XX101083	KEY (OBSOLETE) (OBSOLETE)	N/A
029	XX101391	Crankshaft Pulley	£11.80	Add
030	XX101188	BELT A787 (OBSOLETE) (OBSOLETE)	N/A
031	XX101269	Key 3x5x13 (OBSOLETE)	N/A
032	XX101224	11T Sprocket (OBSOLETE)	N/A
033	XX101225	20T Sprocket	£46.04	Add
034	XX101270	CHAIN (OBSOLETE)	N/A
035	XX101226	Chain Cover (OBSOLETE) (OBSOLETE)	N/A
036	XX101271	M6x40 Bolt	£2.96	Add
037	XX101227	Spring	£9.28	Add
038	XX101062	Pin (Split 2x20)	£2.12	Add
039	XX101228	Connecting Bar	£24.50	Add
040	XX101272	Washer	£3.16	Add
041	XX101273	M6x16 Bolt	£2.72	Add
042	XX101274	3.2x20 Pin	£2.80	Add
043	XX101229	Bracket	£11.80	Add
044	XX101230	Spring	£3.16	Add
045	XX101231	Height Of Cut Quadrant	£17.88	Add
046	XX101232	Height Of Cut Handle	£22.64	Add
047	XX101275	M6x30 Bolt	£2.72	Add
048	XX101233	Height Of Cut Lever	£10.53	Add
049	XX101276	8x24 Pin	£5.47	Add
050	SN50	Nut	£3.16	Add
051	XX101277	Washer	£1.89	Add
052	XX101234	Bolt	£2.96	Add
053	XX101278	Washer	£2.12	Add
054	XX101279	M8x35 Bolt	£3.16	Add
055	XX101235	RH Lower Handle Bracket	£35.27	Add
056	XX101236	Recoil Rope Guide	£9.63	Add
057	XX101395	HANDLE & GRIP (OBSOLETE)	N/A
058	XX101395	HANDLE & GRIP (OBSOLETE)	N/A
059	XX101075	OPC Lever	£10.97	Add
060	XX101129	Drive Lever	£21.69	Add
061	SN61	Bolt	£2.72	Add
062	SN62	CABLE FIXER (OBSOLETE)	N/A
063	XX101280	M6x52 Bolt	£3.89	Add
064	SN64	Drive cable clamp	£4.20	Add
065	XX101396	DRIVE & OPC CABLE (OBSOLETE)	N/A
066	SN66	SEE SN65	N/A	POA
067	XX101009	THROTTLE CONTROL UNIT (OBSOLETE)	N/A
068	SN68	Nut	£2.12	Add
069	XX101379	THROTTLE CABLE	£8.03	Add
070	XX101240	LH Lower Handle Bracket	£35.27	Add
071	XX101282	M8x75 Bolt	£4.20	Add
072	XX101283	M8x50 Bolt	£3.62	Add
073	XX101160	FLASHING NUT	£10.46	Add
074	XX101284	BOLT	£2.24	Add
075	XX101285	WASHER (OBSOLETE)	N/A
076	XX101286	WING BOLT (OBSOLETE) (OBSOLETE)	N/A
077	XX101287	WASHER	£1.88	Add
078	XX101241	GRASS BAG FRAME	£37.99	Add
079	XX101398	LAWNFLITE grass bag (OBSOLETE) (OBSOLETE)	N/A
080	XX101288	Rear Deflector	£52.35	Add
081	XX101243	RH Rear Deflector Spring	£2.54	Add
082	XX101244	Rear Deflector Axle	£17.27	Add
083	XX101289	CLIP RING 6	£2.06	Add
084	XX101245	Rear Deflector Plate	£10.32	Add
085	SN85	Springtaprear flap	£2.54	Add
086	XX101290	Rivet 3.8x9.5	£2.56	Add
087	XX101247	ROLLER AXLE (OBSOLETE) (OBSOLETE)	N/A
088	XX101291	WASHER	£1.73	Add
089	XX101248	DUST SHIELD	£3.14	Add
090	XX101249	BEARING	£7.43	Add
091	XX101250	ROLLER 2 (OBSOLETE) (OBSOLETE)	N/A
092	XX101251	ROLLER 1 (OBSOLETE) (OBSOLETE)	N/A
093	XX101292	WASHER	£2.17	Add
094	XX101293	BEARING HF-1216 (OBSOLETE)	N/A
095	XX101252	Bearing Housing	£24.50	Add
096	SN96	Bearing housingtapright	£24.50	Add
097	XX101294	OBTURATING RING	£8.99	Add
098	XX101253	ROLLER BEARING HOUSING	£31.80	Add
099	XX101295	BEARING 6001-2RS	£14.13	Add
100	SN100	Clip ring	£56.69	Add
101	XX101254	HUB CAP	£2.61	Add
102	XX101297	Washer	£2.00	Add
103	XX101298	M6 Nut	£2.12	Add
104	XX101255	Rear Axle	£110.95	Add
105	XX101256	Bearing Housing	£42.23	Add
106	XX101257	Gland	£4.54	Add
107	XX101143	Hub Cap	£7.98	Add
108	XX101144	Front Wheel	£46.04	Add
109	XX101260	Front Axle	£44.76	Add
110	XX101261	Gland	£3.62	Add
111	XX101050	Front Axle Bush	£6.50	Add
112	XX101262	GEARBOX (OBSOLETE)	N/A
113	XX101299	5x40 Pin	£2.60	Add
114	XX101300	M8x60 Bolt	£5.47	Add
115	SN115	Washer	£2.12	Add
116	XX101301	Rivet 5.5x19	£2.34	Add
117	SN117	Bolt	£2.72	Add
118	XX101263	Bracket	£4.65	Add
119	XX101302	M8 Nut	£2.34	Add
120	XX101303	Clip	£2.00	Add
121	XX101384	Decal (OBSOLETE)	N/A
