FG122_4800

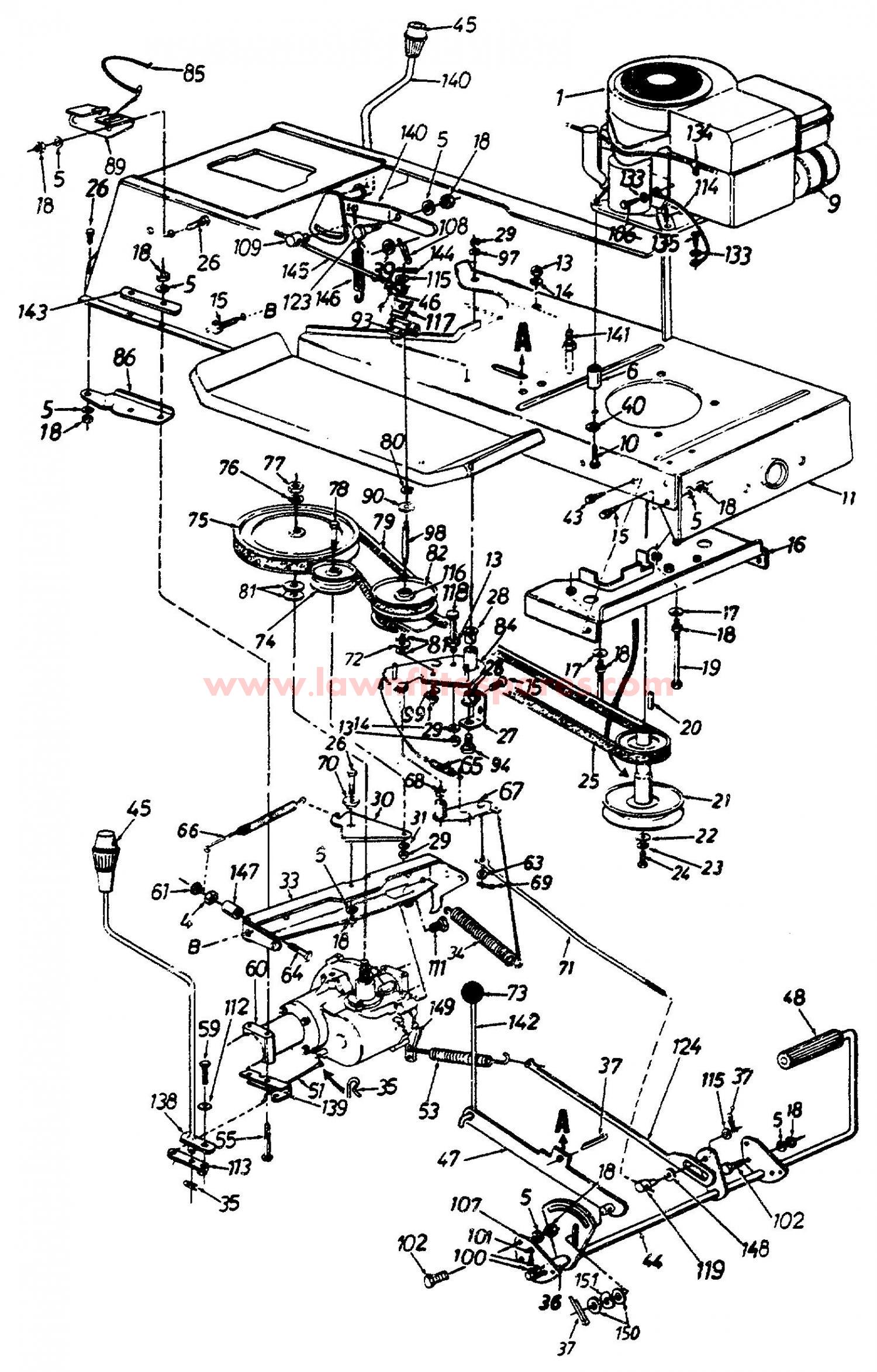

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	--	Engine	N/A	POA
004	712-0298	NUT:JAM:1/4-20:GR2	£3.80	Add
005	736-0119	LOCK WASHER 5/16	£3.33	Add
006	750-0777	NO LONGER AVAILABLE	N/A	POA
009	--	Engine	N/A	POA
010	710-1007	SCREW HEX HD TAP	£4.14	Add
011	17619C	LOWER FRAME 17620B	£319.82	Add
013	712-0287	NUT HEX	£3.31	Add
014	736-0329	L. WASHER	£3.26	Add
015	710-0604A	SCREW	£3.62	Add
016	17893	BELT GUARD BRKT. ASS'Y.	£1,050.05	Add
017	736-0242	BELL WASHER	£3.72	Add
018	712-3010	NUT 5/16 x 18	£2.77	Add
019	710-0190	HHCS:5/16-18:4.00:GR5:STD	£5.31	Add
020	714-0114	SQUARE KEY	£5.26	Add
021	753-0635	NO LONGER AVAILABLE	N/A	POA
022	736-0322	FI-WASH	£8.68	Add
023	736-0171	WASHER	£2.93	Add
024	710-0757	HEX SCREW	£7.96	Add
025	754-0280A	BELT	£70.95	Add
026	710-3008	HEX BOLT	£3.03	Add
027	17963	BRACKET-BRG SHAFT	£7.19	Add
028	741-0591	FLANGE BEARING	£3.44	Add
029	712-0241	HEX NUT 3/8-24	£2.79	Add
030	17834	IDLER BRACKET	£24.60	Add
031	736-0169	L. WASHER	£2.89	Add
033	753-0890	TRANSAXLE SUPPORT BRKT. 17766	£86.89	Add
034	732-0556	SPRING EXTENSION 94 X 7.57 LG	£21.82	Add
035	714-0149B	COTTER PIN	£3.58	Add
036	750-0802	SPCR:.640 ID X .76 OD X2.63 LG	£3.20	Add
037	714-0470	COTTER PIN	£5.07	Add
039	736-0108	WASH-FLAT:.510 x.750 x.033	£3.59	Add
040	736-0247	F.I. WASHER	£8.70	Add
043	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
044	17837	CLUTCH/BRAKE PEDAL ASS'Y.	£72.17	Add
045	720-0218	KNOB	£26.70	Add
046	710-1388	SCREW	£3.23	Add
047	17827	PARKING BRAKE LOCKOUT BRKT. ASS'Y.	£765.91	Add
048	735-0239A	FOOT PAD	£8.75	Add
051	747-0774	NO LONGER AVAILABLE	N/A	POA
053	732-0656	EXT. SPRING 3.6"	£33.54	Add
055	710-3056	HHCS:5/16-18:3.25:GR5:STD	£9.51	Add
059	710-0195	HEX BOLT	£2.93	Add
060	618-0034	TRANSAXLE COMPLETE	£1,443.61	Add
061	712-0291	LOCK-NUT	£2.77	Add
063	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
064	710-1026	SCREW	£3.91	Add
065	732-0568	SPRING EXTENSION	£5.45	Add
066	732-0428A	SPRING	N/A	POA
067	16554A-Z	BRKT:VAR.SPD.TORQ ASSY-PAI 16554A	£26.52	Add
068	741-0419	FLANGE BEARING (OBSOLETE)	N/A
069	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
070	748-0234	SHOULDER SPACER	£5.43	Add
071	747-0530A	LINK-SPEED CONTROL	£22.29	Add
072	741-0405	NO LONGER AVAILABLE	N/A	POA
073	720-0166	KNOB:BALL:1.06 DIA	£6.30	Add
074	756-0643A	PUL IDLER FLAT 3.12	£27.94	Add
075	756-0950	PUL:V-TYP:8.0 x 5/8-36	£54.46	Add
076	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add
077	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add
078	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
079	754-0370	VARIABLE SPEED BELT	£47.70	Add
080	716-0114	RING:RET:.56 DIA SHAFT	£3.58	Add
081	736-0355	WASHER	£3.19	Add
082	717-0800A	PUL:DR:VARI SPD 5.06 DIA	£236.50	Add
084	16354B	NO LONGER AVAILABLE	N/A	POA
085	732-0525	COMP SPRING CLIP	£3.13	Add
086	17668A	BRKT:AXLE:RH 17668	£48.47	Add
086	17669A	BRKT:AXLE:LH 17669	£36.95	Add
089	783-1016B	BRKT:ROD:SPEED CONTROL	£8.99	Add
090	736-0414	WASHER	£5.00	Add
093	725-3169A	SWITCH-SAFETY	N/A	POA
094	738-0755	NO LONGER AVAILABLE	N/A	POA
097	736-0105	BELL WASHER	£3.33	Add
098	738-0837	NO LONGER AVAILABLE	N/A	POA
099	736-0331	BELL WASHER	£3.95	Add
100	736-0256	WASHER:FL:.635 IDX.930 ODX.03	£3.20	Add
101	714-0470	COTTER PIN	£5.07	Add
102	710-0650	SCREW	£3.58	Add
106	710-0323	SCREW	£3.70	Add
107	17860-0637	BRACKET-PEDAL 17860	£5.63	Add
108	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
109	711-0198	PIVOT BUSHING	£12.12	Add
111	710-0909A	NO LONGER AVAILABLE	N/A	POA
112	736-0270	BELL WASHER	£3.91	Add
113	17832	SHIFT LEVER LINK ASS'Y.	£14.51	Add
114	725-0980	WIRE	£10.61	Add
115	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
116	741-0404	BRG:NDL:.5625 IDx.7500x.5550	£34.91	Add
117	17962	PLT:SW	£4.66	Add
118	710-1136	HEX BOLT 1/4-20 X 3.25" LG.	£2.56	Add
119	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
123	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add
124	17794	BRAKE ROD ASS'Y.	£487.82	Add
129	736-0175	SPRING WASHER	£3.39	Add
133	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
134	726-0235	SPEED CLIP	£4.91	Add
135	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
138	747-0768	SHIFT LEVER ASS'Y.	£94.62	Add
139	17767	SHIFT LEVER SUPPORT BRKT.	£6.35	Add
140	17768	SPEED SELECTOR LEVER ASS'Y.	£390.75	Add
141	711-0747	PIN:GDE:.250 DIA x 1.68 LG	£4.62	Add
142	747-0770	BRAKE LOCKOUT ROD	£12.83	Add
143	17840	TRANSAXLE BRACKET REINFORCE	£14.44	Add
144	714-0474	PIN (RED)	£3.20	Add
145	747-0771	NO LONGER AVAILABLE	N/A	POA
146	732-0429A	SPRING EXTENSION	£8.73	Add
147	750-0470	SPACER:.47 OD x.96 LG	£7.41	Add
148	736-0167	FL-WASH. 5/8" I.D. X 1.25"	£16.07	Add
149	717-0772B	LEVER, PARK BRAKE ENGAGEMENT	£13.38	Add
150	736-0300	WASHER	£2.81	Add
151	736-0413	NO LONGER AVAILABLE	N/A	POA
