FG122_3100

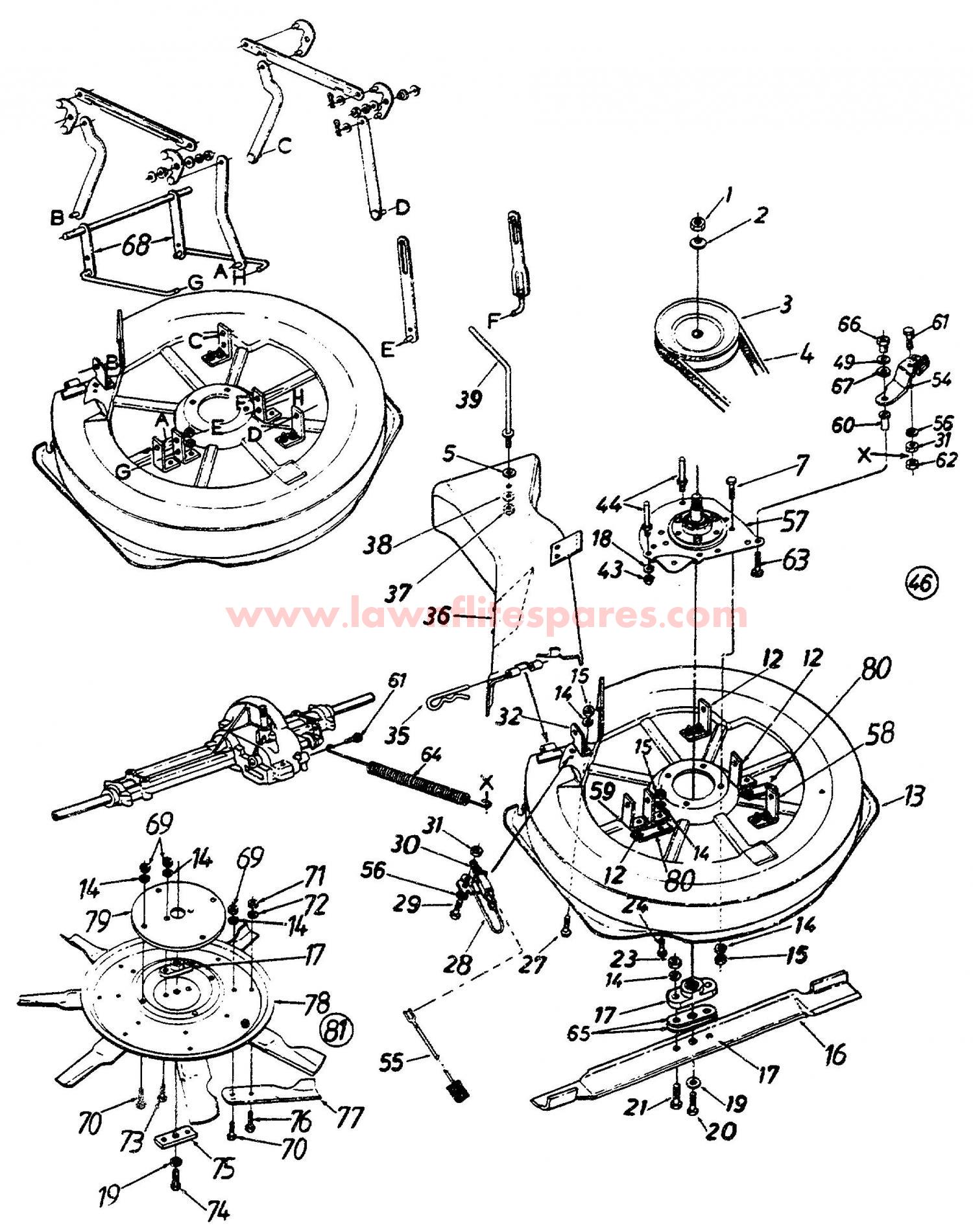

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	712-0318	NUT	£3.94	Add
002	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add
003	756-0444	V-BELT-PULLEY 092.15.510	£127.61	Add
004	754-0328	BELT	£37.40	Add
005	736-0231	WASHER FLAT	£3.58	Add
007	710-3008	HEX BOLT	£3.03	Add
012	16707A	NO LONGER AVAILABLE	N/A	POA
013	15906	NO LONGER AVAILABLE	N/A	POA
014	736-0119	LOCK WASHER 5/16	£3.33	Add
015	712-3010	NUT 5/16 x 18	£2.77	Add
016	742-0256A	NO LONGER AVAILABLE	N/A	POA
017	748-0300	BLADE ADAPTOR	£20.23	Add
018	736-0169	L. WASHER	£2.89	Add
019	736-217	L-WASH. 3/8" I.D. H.D.	N/A	POA
020	710-0459A	TIE ROD BOLT	£3.62	Add
021	710-0624	HEX. HEAD SCREW 5/16-24X1.50"	£10.65	Add
023	712-3057	NUT 5/16-24	£3.00	Add
024	710-0259	NO LONGER AVAILABLE	N/A	POA
027	710-0323	SCREW	£3.70	Add
028	725-0765	NO LONGER AVAILABLE	N/A	POA
029	710-0289	HHCS:1/4-20:.50:GR2:STD	£20.02	Add
030	725-0269	NO LONGER AVAILABLE	N/A	POA
031	712-0287	NUT HEX	£3.31	Add
032	16708	ANGLE HANGER BRKT.	£8.79	Add
035	714-0174	PIN-COTTER 092.15.519 (OBSOLETE)	N/A
036	16094A	NO LONGER AVAILABLE	N/A	POA
037	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add
038	736-0271	WASHER	£3.16	Add
039	747-0474	NO LONGER AVAILABLE	N/A	POA
043	712-0342	NUT-HEX CENTER AF-43082	£7.77	Add
044	711-0780	NO LONGER AVAILABLE	N/A	POA
046	813-06182	30" R.D. DECK ASS'Y. COMP. (SINGLE BLADE)	N/A	POA
046	913-06179	NO LONGER AVAILABLE	N/A	POA
049	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
054	17869	NO LONGER AVAILABLE	N/A	POA
055	725-1558	NO LONGER AVAILABLE	N/A	POA
057	717-0916	NO LONGER AVAILABLE	N/A	POA
058	17409	HANGER BRKT.--L.H.	£7.85	Add
059	17408	HANGER BRKT.--R.H.	£6.54	Add
060	750-0702	NO LONGER AVAILABLE	N/A	POA
061	710-0597	HEX SEMS SCREW	£2.97	Add
062	712-0107	NO LONGER AVAILABLE	N/A	POA
063	710-0116	SCREW-HEX	£9.03	Add
064	732-0657	NO LONGER AVAILABLE	N/A	POA
065	753-0478	NO LONGER AVAILABLE	N/A	POA
066	711-0404	NO LONGER AVAILABLE	N/A	POA
067	736-0232	WAVE WASHER	£3.69	Add
068	747-0783	NO LONGER AVAILABLE	N/A	POA
069	712-0237	HEX CENTRE NUT	£11.18	Add
070	710-0237	HEX SCREW	£5.55	Add
071	712-0117	NUT:CTR LOCK:1/4-28:GR A	£3.19	Add
072	736-0329	L. WASHER	£3.26	Add
073	710-0672	HHCS:5/16-24:1.25:GR5:STD	£3.51	Add
074	710-0879	BOLT	£17.27	Add
075	753-0478	NO LONGER AVAILABLE	N/A	POA
076	710-0195	HEX BOLT	£2.93	Add
077	742-0495B	BLADE	£18.32	Add
078	742-0318	NO LONGER AVAILABLE	N/A	POA
079	742-0494-0637	NO LONGER AVAILABLE	N/A	POA
080	17799	SHIM---4 REQ'D. (USED ON 813-06179 DECK ASS'Y. ONLY)	£15.54	Add
081	801-6765	BLADE ASSY-8 TIP 3 16765	£384.59	Add
