FG122_3400

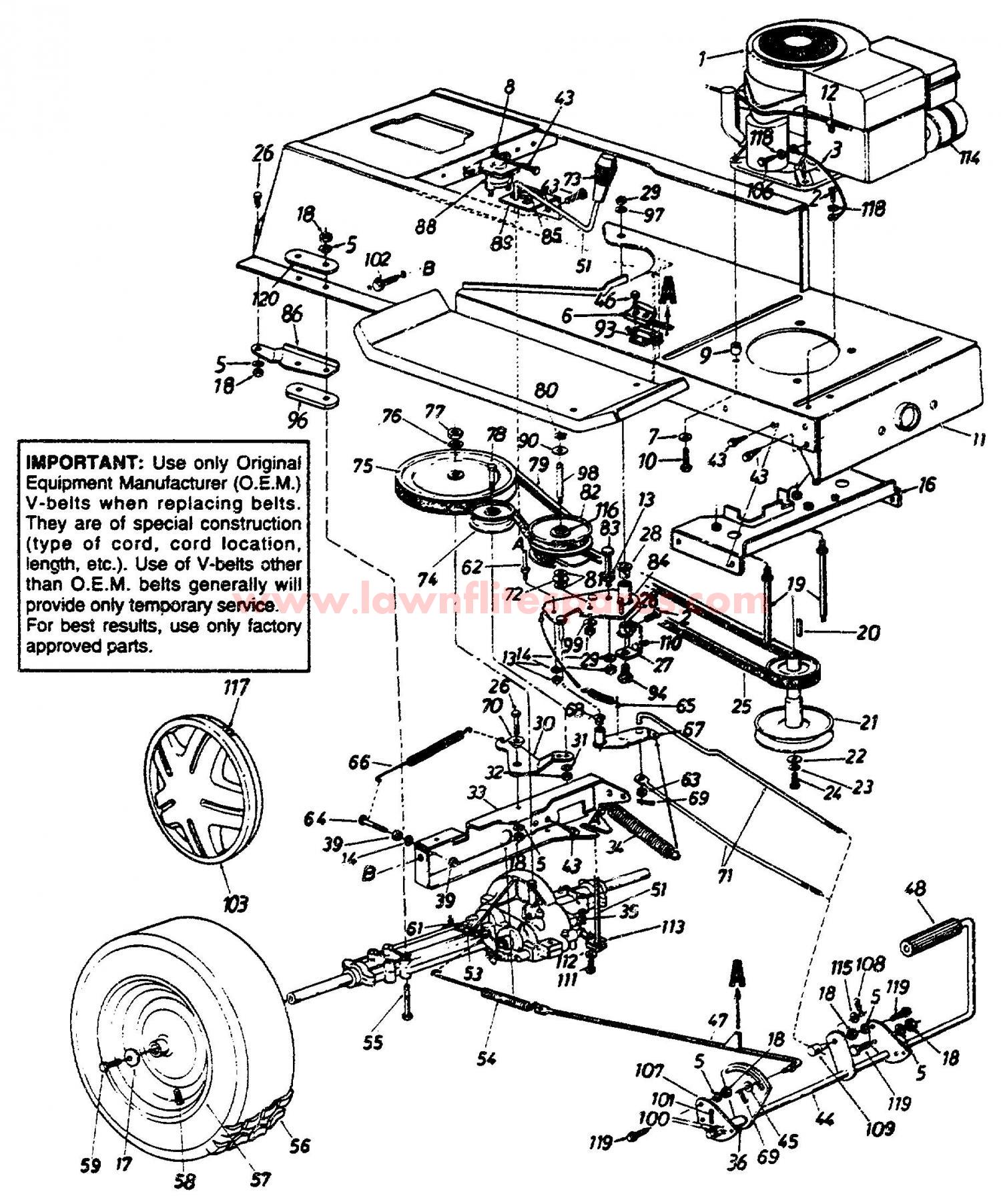

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	--	Engine	N/A	POA
002	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
003	725-0980	WIRE	£10.61	Add
005	736-0119	LOCK WASHER 5/16	£3.33	Add
006	17962	PLT:SW	£4.66	Add
007	736-0247	F.I. WASHER	£8.70	Add
008	736-0222	NO LONGER AVAILABLE	N/A	POA
009	750-0777	NO LONGER AVAILABLE	N/A	POA
010	710-1007	SCREW HEX HD TAP	£4.14	Add
011	17619C	LOWER FRAME 17620B	£319.82	Add
012	726-0235	SPEED CLIP	£4.91	Add
013	712-0287	NUT HEX	£3.31	Add
014	736-0329	L. WASHER	£3.26	Add
016	17893	BELT GUARD BRKT. ASS'Y.	£1,050.05	Add
017	736-0242	BELL WASHER	£3.72	Add
018	712-3010	NUT 5/16 x 18	£2.77	Add
019	711-1239	PIN	£5.00	Add
020	714-0114	SQUARE KEY	£5.26	Add
021	753-0635	NO LONGER AVAILABLE	N/A	POA
022	736-0322	FI-WASH	£8.68	Add
023	736-0171	WASHER	£2.93	Add
024	710-0757	HEX SCREW	£7.96	Add
025	754-0280A	BELT	£70.95	Add
026	710-3008	HEX BOLT	£3.03	Add
027	17963	BRACKET-BRG SHAFT	£7.19	Add
028	741-0591	FLANGE BEARING	£3.44	Add
029	712-0241	HEX NUT 3/8-24	£2.79	Add
030	176431	SNAP ROD	£7.54	Add
030	17694A	NO LONGER AVAILABLE	N/A	POA
031	736-0169	L. WASHER	£2.89	Add
032	712-0241	HEX NUT 3/8-24	£2.79	Add
033	17629A	BRACKET-TRANS SUP	£56.95	Add
034	732-0556	SPRING EXTENSION 94 X 7.57 LG	£21.82	Add
035	714-0149B	COTTER PIN	£3.58	Add
036	750-0802	SPCR:.640 ID X .76 OD X2.63 LG	£3.20	Add
039	712-0138	NUT	£3.03	Add
043	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
044	17715B-0637	PEDAL ASSY-CLUTCH 17715B	£82.90	Add
045	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
046	710-1388	SCREW	£3.23	Add
047	17686A	BRAKE ROD ASS'Y. 17686	£26.29	Add
048	735-0239A	FOOT PAD	£8.75	Add
051	17705	ROD:ASSY-SHIFT 375 DIA	£28.06	Add
053	732-0264	EXTENSION SPRING	£10.47	Add
054	732-0413	EXT SPRING	£12.22	Add
054	732-0642	NO LONGER AVAILABLE	N/A	POA
055	710-1068	NO LONGER AVAILABLE	N/A	POA
055	710-0189	HHCS:5/16-18:3.00:GR5:STD	£4.62	Add
056	734-0817662	WHL COMP:18x9.5 734-0817	£225.94	Add
056	734-0592-G	WHL:COMP:18 x 6.5 7	£184.03	Add
056	734-1675	WHEEL ASSY W/TIRE	£279.06	Add
056	111.11.114	NO LONGER AVAILABLE	N/A	POA
056	734-0448	TIRE:18 X 9.5	£140.76	Add
056	734-0294	TIRE:18 X 6.5 X 8 SQ SH	£125.82	Add
056	734-1730	TIRE-TUBELESS 2 734-1596	£159.43	Add
056	734-1065	WHEEL ASS'Y. COMP. TIRE ONLY - 20"X10.0"	£162.94	Add
057	634-04369662	RIM ASM:COLOUR CUB BEIGE 634-0070	£105.87	Add
057	634-04174662	RIM ASM-8.0X5.38 w/VALVE	£78.95	Add
057	634-04369662	RIM ASM:COLOUR CUB BEIGE 634-0070	£105.87	Add
057	634-04369662	RIM ASM:COLOUR CUB BEIGE 634-0070	£105.87	Add
058	734-0255	VALVE - TUBELESS AIR	£7.02	Add
059	710-0627	HEX SCREW	£3.32	Add
061	732-0722A	SPRING:BRAKE RETURN ANCHOR	£8.39	Add
062	711-1000	BELT KEEPER	£9.71	Add
063	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
064	710-0428	NO LONGER AVAILABLE	N/A	POA
065	732-0568	SPRING EXTENSION	£5.45	Add
066	732-0384	EXT SPRING	£15.79	Add
067	16554A-Z	BRKT:VAR.SPD.TORQ ASSY-PAI 16554A	£26.52	Add
067	16352A	NO LONGER AVAILABLE	N/A	POA
068	741-0419	FLANGE BEARING (OBSOLETE)	N/A
069	714-0111	COTTER PIN	£3.20	Add
070	748-0234	SHOULDER SPACER	£5.43	Add
071	747-0530A	LINK-SPEED CONTROL	£22.29	Add
071	747-0512	SPEED CONTROL LINK (548)	£23.72	Add
072	741-0405	NO LONGER AVAILABLE	N/A	POA
073	720-0232	KNOB:SHFT:1.60 OD X 1.56	£6.72	Add
074	756-0643A	PUL IDLER FLAT 3.12	£27.94	Add
075	656-0005	PULLEY	£67.94	Add
075	656-0004	PULLEY	£94.36	Add
076	736-0427	BELL:WASH:.567 x 1.125 x .06	£3.31	Add
077	712-3035	NUT:JAM:9/16-18:GRADE 5	£3.59	Add
078	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
079	754-0370	VARIABLE SPEED BELT	£47.70	Add
080	716-0114	RING:RET:.56 DIA SHAFT	£3.58	Add
081	736-0355	WASHER	£3.19	Add
082	717-0800A	PUL:DR:VARI SPD 5.06 DIA	£236.50	Add
083	710-1223	NO LONGER AVAILABLE	N/A	POA
084	16354B	NO LONGER AVAILABLE	N/A	POA
085	732-0525	COMP SPRING CLIP	£3.13	Add
086	17668A	BRKT:AXLE:RH 17668	£48.47	Add
086	17669A	BRKT:AXLE:LH 17669	£36.95	Add
088	725-1426A	SOLENOID	£24.30	Add
089	17630	GUIDE BRACKET, FRONT	£9.58	Add
090	736-0414	WASHER	£5.00	Add
093	725-3169A	SWITCH-SAFETY	N/A	POA
094	738-0755	NO LONGER AVAILABLE	N/A	POA
096	748-0334	TRANSAXLE SPACER .68	£6.32	Add
097	736-0105	BELL WASHER	£3.33	Add
098	738-0569	SHAFT V. PULLEY	£39.36	Add
099	736-0331	BELL WASHER	£3.95	Add
100	736-0256	WASHER:FL:.635 IDX.930 ODX.03	£3.20	Add
101	714-0470	COTTER PIN	£5.07	Add
102	710-0604A	SCREW	£3.62	Add
103	734-1615	HUBCAP 8" DIA OYSTER GRAY	£28.68	Add
103	734-1614	HUB CAP BEIGE	£25.27	Add
106	710-0323	SCREW	£3.70	Add
107	17860-0637	BRACKET-PEDAL 17860	£5.63	Add
108	714-0470	COTTER PIN	£5.07	Add
109	711-0198	PIVOT BUSHING	£12.12	Add
110	710-0376	SCREW HEX CAP 5/16	£9.02	Add
111	710-0195	HEX BOLT	£2.93	Add
112	736-0270	BELL WASHER	£3.91	Add
113	17707	NO LONGER AVAILABLE	N/A	POA
114	--	Engine	N/A	POA
115	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
116	741-0404	BRG:NDL:.5625 IDx.7500x.5550	£34.91	Add
117	727-0425A	SPRING CLIP	£2.98	Add
118	736-0607	WASH:LOCK:5/16 EXT TOOTH	£3.31	Add
119	710-0650	SCREW	£3.58	Add
120	17840	TRANSAXLE BRACKET REINFORCE	£14.44	Add
