FG043_1000

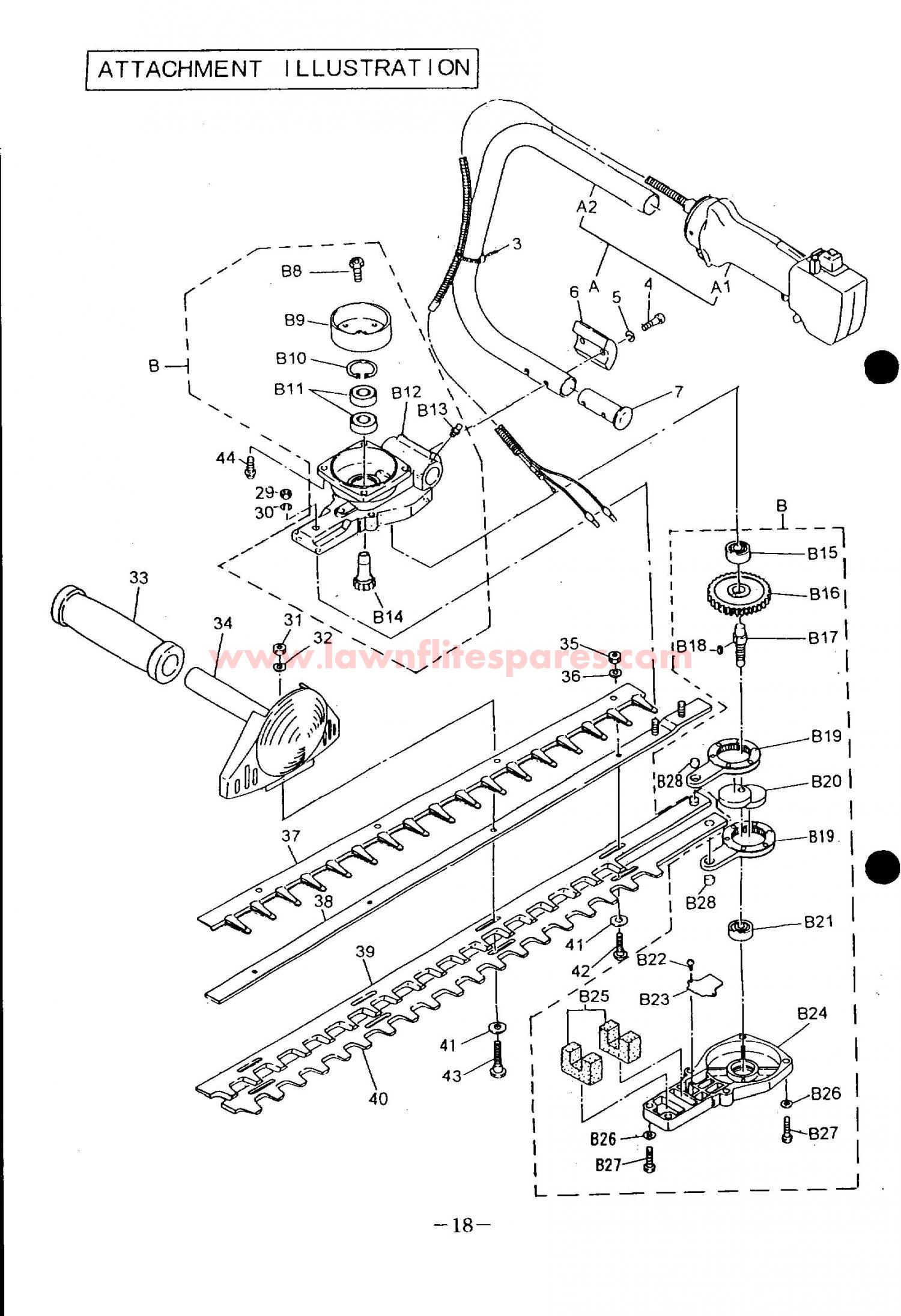

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
003	801056	CLIP WIRE	£2.38	Add
004	631515	SCREW SOCKET	£3.51	Add
005	651050	WASHER 720153	£3.00	Add
006	801243	HANDLE MOUNT	£31.19	Add
007	801253	HANDLE CLAMP INSERT	£30.70	Add
00A	801340	THROTTLE HANDLE ASSY	£126.97	Add
00B	801333	GEAR HOUSING ASSY	N/A	POA
029	640600	HEX NUT (OBSOLETE) (OBSOLETE)	N/A
030	651060	WASHER SPRING (OBSOLETE) (OBSOLETE)	N/A
031	640600	HEX NUT (OBSOLETE) (OBSOLETE)	N/A
032	650060	Washer Ø6 (OBSOLETE) (OBSOLETE)	N/A
033	705256	HANDLE GRIP	£8.87	Add
034	801254	FRONT HANDLE	£19.17	Add
035	640600	HEX NUT (OBSOLETE) (OBSOLETE)	N/A
036	651060	WASHER SPRING (OBSOLETE) (OBSOLETE)	N/A
037	801347	BLUNT EXTENSION	£49.78	Add
038	801278	BACK-UP BAR E256/0E 1/10/89 (OBSOLETE)	N/A
039	801051	BLADE UPPER 32" (OBSOLETE) (OBSOLETE)	N/A
040	801052	BLADE LOWER 32" (OBSOLETE)	N/A
041	801054	WASHER SPECIAL	£3.13	Add
042	801280	SCREW SPECIAL SHORT	£3.13	Add
043	801055	SCREW SPECIAL LONG	£3.51	Add
044	710020	SCREW HEX M6X16 S260	£2.38	Add
0A1	737063	THROTTLE LEVER ASSY	£86.07	Add
0A2	801338	REAR HANDLE	£25.37	Add
0B8	710020	SCREW HEX M6X16 S260	£2.38	Add
0B9	801328	CLUTCH DRUM	£31.86	Add
B10	621026	SNAP RING	£2.84	Add
B11	600006	BALL BEARING 600005	£19.28	Add
B12	801239	GEAR HOUSING E256/E2560	£103.37	Add
B13	803091	GREASE NIPPLE	£3.13	Add
B14	801327	PINION GEAR	£23.52	Add
B15	606081	BALL BEARING	£18.71	Add
B16	801082	GEAR	£42.99	Add
B17	801321	GEAR SHAFT (OBSOLETE)	N/A
B18	801083	KEY (OBSOLETE)	N/A
B19	801323	This component is OBSOLETE	N/A
B20	801329	ECCENTRIC (OBSOLETE)	N/A
B21	606270	Ball Bearing 627 (OBSOLETE)	N/A
B22	632308	SCREW (OBSOLETE)	N/A
B23	801188	THRUST DISC (OBSOLETE)	N/A
B24	801252	HOUSING COVER E256/E2560	£24.68	Add
B25	801246	FELT (OBSOLETE) (OBSOLETE)	N/A
B26	650051	Washer Ø5 (OBSOLETE)	N/A
B27	630520	HEX BOLT (OBSOLETE)	N/A
B28	801326	CON ROD COLLAR	£4.38	Add
