FG288_0070

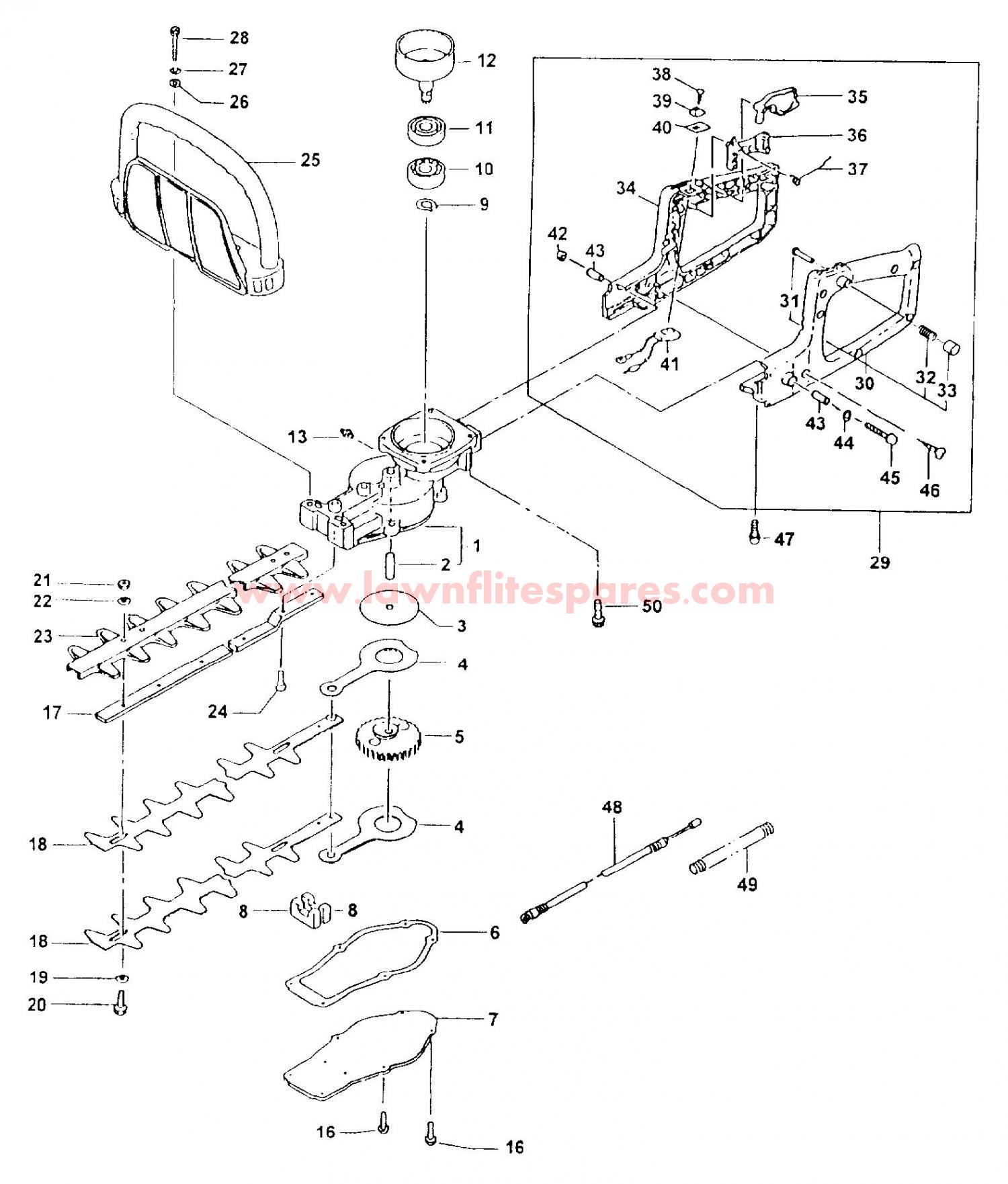

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	813006	GEAR CASE ASSY	£107.14	Add
002	813008	Gear Shaft	£8.51	Add
003	813009	Guide Plate	£5.96	Add
004	813010	CONNECTING ROD	£44.02	Add
005	813011	Gear	£135.67	Add
006	813012	GASKET GEAR CASE (OBSOLETE) (OBSOLETE)	N/A
007	813013	Gear Case Cover	£29.83	Add
008	813017	FELT	£2.96	Add
009	620015	SNAP RING	£2.43	Add
010	730700	Ball Bearing 6002C3	£23.95	Add
011	813034	Ball Bearing 6002Z C3	£41.58	Add
012	813007	Clutch Drum	£97.86	Add
013	813020	GREASE NIPPLE (RED)	£4.89	Add
016	661410	Screw Socket M4*10S	£3.59	Add
017	813014	Cutter Guide 625mm	£67.86	Add
018	813016	BLADE (OBSOLETE)	N/A
019	813018	Special Washer	N/A	POA
020	813019	Special Bolt (OBSOLETE) (OBSOLETE)	N/A
021	813035	Special Nut M6 P=0.9	£6.70	Add
022	650060	Washer Ø6 (OBSOLETE) (OBSOLETE)	N/A
023	813015	Blunt Extension	£74.98	Add
024	710310	SCREW M6X16 (OBSOLETE) (OBSOLETE)	N/A
025	813005	Front Handle	£40.10	Add
026	650050K	Washer Ø5	£2.54	Add
027	651050K	Spring Washer Ø5	£2.54	Add
028	810006	Screw Socket M5*40 631540	N/A	POA
029	813022	Handle Asy	£104.66	Add
030	813024	Handle A	N/A	POA
031	811321	Push Pin	£6.80	Add
032	810247	Spring Stoper	£570.44	Add
033	811320	Push Pin Cap	£3.62	Add
034	813030	Handle B	£76.92	Add
035	813028	Safety Lever	£13.31	Add
036	8130275	Throttle Lever 813027	N/A	POA
037	813029	Throttle Lever Spring	£11.39	Add
038	632310	Screw Pan+ M3*10	£2.80	Add
039	810173	StopButtun	£5.18	Add
040	810448	Plate Stop Button	£5.18	Add
041	813025	Stop Switch	N/A	POA
042	710312	Nylon Nut M5	£4.23	Add
043	730363	FUEL TANK STAY (OBSOLETE)	N/A
044	650051	Washer Ø5 (OBSOLETE)	N/A
045	730669	Screw M5*45	£3.10	Add
046	710311	Tapping Screw M4*18	£3.14	Add
047	710313	Screw Pan+ M6*18PW, SW	£3.14	Add
048	813031	Throttle Wire 230L+50L	£27.45	Add
049	813033	Corrugate Tube Ø10x200	£7.22	Add
050	710020	SCREW HEX M6X16 S260	£2.38	Add
