FG069_0200

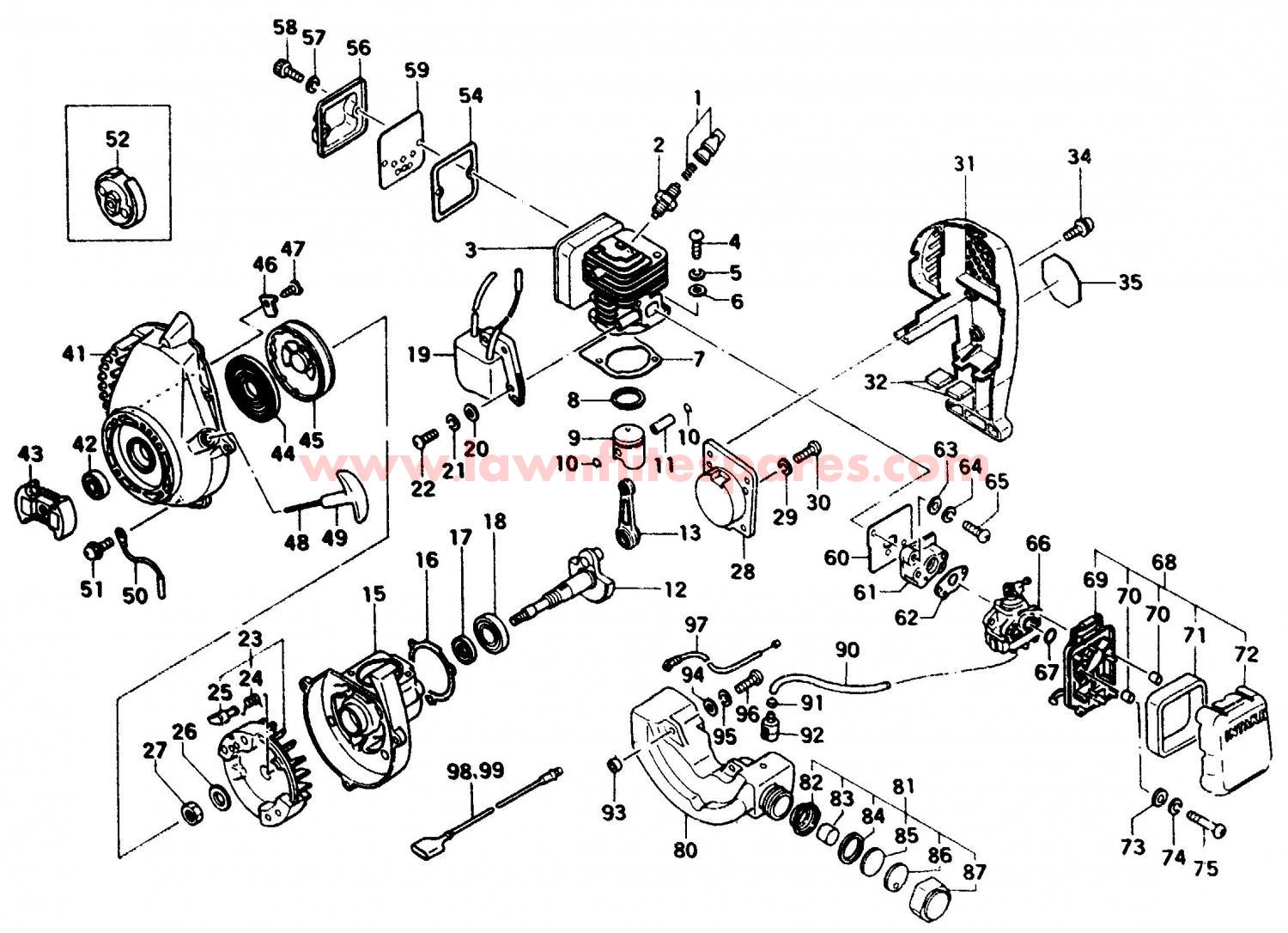

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	730049	CAP ASSY SPARK PLUG	£8.12	Add
002	780019	SPARK PLUG BPM6A	£17.35	Add
003	731676	CYLINDER 731586	N/A	POA
004	632522	DNR	£2.57	Add
005	651050	WASHER 720153	£3.00	Add
006	650051	Washer Ø5 (OBSOLETE)	N/A
007	731587	GASKET	N/A	POA
008	731251	PISTON RING (OBSOLETE)	N/A
009	731677	PISTON 30 731588	£121.35	Add
010	730306	CLIP	£3.81	Add
011	731589	PISTON PIN	£10.67	Add
012	731590	CRANKSHAFT ASSY	£324.73	Add
013	731591	CONNECTING ROD ASSY	£190.54	Add
015	731592	CRANKCASE	£98.89	Add
016	731593	GASKET	£4.20	Add
017	810236	OIL SEAL 15257 731344	£9.58	Add
018	730700	Ball Bearing 6002C3	£23.95	Add
019	731594	IGNITION COIL (OBSOLETE) (OBSOLETE)	N/A
020	650041	WASHER	£2.57	Add
021	651040	WASHER SPRING 720099	£2.57	Add
022	632420	SCREW M4X20	£2.51	Add
023	731595	MAGNET ROTOR ASSY	£249.71	Add
024	731596	SPRING PAWL	£4.92	Add
025	731597	PAWL	£7.37	Add
026	650120	WASHER	£2.51	Add
027	710201	NUT M12	£4.20	Add
028	731598	CRANKCASE COVER	N/A	POA
029	651050	WASHER 720153	£3.00	Add
030	632516	SCREW 730383	£2.51	Add
031	731599	MUFFLER PROTECTOR	N/A	POA
032	730810	DAMPER	£4.20	Add
034	731497	SCREW M5 X 16	£3.10	Add
035	731600	NAME PLATE ST2048	£7.95	Add
035	731601	NAME PLATE ST2050	£7.95	Add
041	731602	FAN CASE RED	£68.84	Add
042	600002	BALL BEARING	£17.46	Add
043	731603	CLUTCH ASSY	£66.61	Add
044	731325	STARTER SPRING	£50.88	Add
045	731604	STARTER RECOIL PULLEY	£35.15	Add
046	731605	RETAINER	£8.47	Add
047	812099	SET SCREW 731606	£3.94	Add
048	730820	STARTER ROPE E162	£7.41	Add
049	731552	Starter Handle	£12.78	Add
050	731607	STOP CORD	£7.37	Add
051	672520	DNR	£2.77	Add
052	731608	CLUTCH ASSY	£204.00	Add
054	731609	GASKET	£3.81	Add
056	731774	MUFFLER BODY B	£23.55	Add
057	650051	Washer Ø5 (OBSOLETE)	N/A
058	631510	SCREW	£1.88	Add
059	731775	BAFFLE PLATE	£12.78	Add
060	731610	GASKET	£6.34	Add
061	731611	INSULATOR	£34.29	Add
062	731612	GASKET	£3.51	Add
063	650051	Washer Ø5 (OBSOLETE)	N/A
064	651050	WASHER 720153	£3.00	Add
065	632522	DNR	£2.57	Add
066	731613	CARBURETOR ASSY WYL9	£177.62	Add
067	731614	O RING P15	£4.49	Add
068	731615	CLEANER ASSY (OBSOLETE) (OBSOLETE)	N/A
069	723264	Air Filter Body 738125 (OBSOLETE)	N/A
070	731617	COLLAR	£7.37	Add
071	723266	ELEMENT (OBSOLETE)	N/A
072	731619	AIR CLEANER CAP (OBSOLETE)	N/A
073	650051	Washer Ø5 (OBSOLETE)	N/A
074	651050	WASHER 720153	£3.00	Add
075	632560	SCREW M5 X 60	£3.10	Add
080	731620	TANK (OBSOLETE)	N/A
081	732111	TANK CAP ASSY	£19.07	Add
082	731394	BREATHER	£4.43	Add
083	730163	SPONGE (OBSOLETE)	N/A
084	731393	WASHER SPECIAL	£3.51	Add
085	731392	VALVE	£8.87	Add
086	730571	VALVE B	N/A	POA
087	731622	TANK CAP (OBSOLETE)	N/A
090	731623	FUEL PIPE 3X5X130 (OBSOLETE) (OBSOLETE)	N/A
091	723836	CLAMP (OBSOLETE)	N/A
092	731480	PUMP FILTER ASSY (OBSOLETE) (OBSOLETE)	N/A
093	730363	FUEL TANK STAY (OBSOLETE)	N/A
094	650050	WASHER (DNR) 720316	£2.57	Add
095	651050	WASHER 720153	£3.00	Add
096	632518	SCREW	£2.38	Add
097	731624	THROTTLE WIRE	£19.28	Add
098	731625	STOP CORD 267L	£12.78	Add
099	731626	STOP CORD 267L	£11.71	Add
